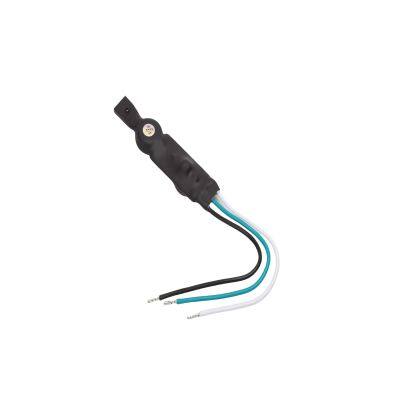

Product Description Key attributes Industry-specific attributesType T1+T2 Number of Pole 2 Rated Voltage 100-277V Max Discharge current 10000 A Other attributesPlace of Origin Guangdong, China Model Number ZYS-P10A Nominal Discharge current 10000 A Rated working voltage/Un(VAC) 90-350V Maximum working voltage/MCOV/Uc(VAC) 350V Rated load current/IL(A) 5A Nominal discharge current/In(kA) 5KA Maximum discharge current/Imax(kA) 10KA Surge impulse voltage/Uoc 10KV Voltage protection level/Up(V) L-N,L-G/PE,N-G/PE≤1.5KV power supply system TN Waterproof grade IP65 work environment -40℃~+85℃ Packaging and deliveryPackaging Details Carton Package Selling Units: Single item Single package size: 20X15X10 cm Single gross weight: 2.000 kg Overview Product Description Overview ZYS-P10A series surge protector is a transient over-voltage protection device specially used for outdoor LED lighting system. It is mainly composed of thermal protection varistor and gas discharge tube device. It can be installed in LED lamp or perpetual lamp and connected with LED power driver to provide reliable surge protection. It can effectively prolong the service life of lamps and improve the stability of lamps and lanterns. Product Paramenters Features* Applicable to class I or II lamps * Built in protection mode: L-N, L-PE,N-PE * Built in thermal separation function for higher security * Parallel isolation design, excellent protectionperformance * Excellent surge resistance and very low residual voltage * Double green cable andwire * The product is small and convenient for embedded installation * IP62 dust proof and waterproof grade Specification
