4200mm Aluminium Window Door Auto Feeding Aluminum CNC Double Head Precision Cutting Saw

Product Description

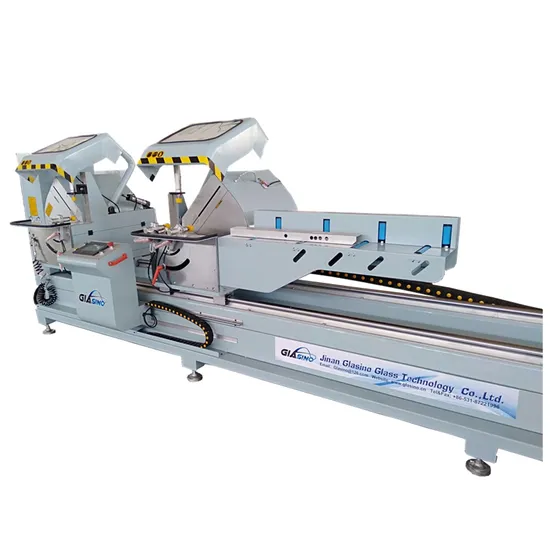

4200mm aluminium window door auto feeding aluminum CNC double head precision cutting saw
Equipment Features for 4200mm aluminium window door auto feeding aluminum CNC double head precision cutting saw
Glasino Precision CNC Double Head Cutting Saw is used for not only aluminum and PVC profile cutting but also aluminum corner connector cutting.
1. Feeding system adopts an imported linear guide pair, with high accuracy and long service life.
2. Adopted high helical pitch ball screw-lead motion, with high accurate driving, locating, and smooth working.
3. Adopted DELTA/ MITSUBISHI CNC technique, can achieve various profile auto cutting off.
4. 45°and 90° cutting is available.
5. GERMANY Imported carbide saw blade gives accurate processing and high endurance.
6. Imported linear bearing motion pair ensured steady processing accuracy.
7. Saw blade rotates smoothly due to high accuracy main spindle.
8. Uniform sped feeding and smooth motion
8. Auto-opening guard shield ensured safety operation.
10. The two-way location-and-clamping features high precision and steadiness.
Details of 4200mm aluminium window door auto feeding aluminum CNC double head precision cutting sawCNC type:
Manual type, can with digital display:
Working samples
Technical Parameter

Power Supply	380V 50Hz	Cutting Angle	45 degree 90 degree
Power Rate	3Kw	Cutting Length	400-4200mm
Motor Speed	3200rpm	Max. Cutting Width	150mm
Saw Blade Specification	Φ500×4.4×Φ30×Z120	Max. Cutting Height	300mm
Air Pressure	0.5-0.8Mpa	Overall Dimension	5800*1500*1700
Air Consumption	200L/min	Weight	1600

Product packaging
Workshop Showing
Exhibition
FAQ
1.Are you a factory or a trading company?
We are factory
2. How long is the equipment warranty?
One year.
3. How to provide after-sales service?
Provide on-site installation, commissioning, and training. Free accessories within one year. Provide remote
service and video guidance.
4. How long is the delivery time?
10-20days after receiving the deposit.

---
