Mchiner diesel engine Air Cooled 2.2KW Professional Diesel Welding Generator

Product Description

1.Product Specification:

Model No	RJ6700EWP
Frequency(Hz)	50/60
Rated Output(KW)	2.0/2.2 KW
Rated Voltage(V)	220V or as requested
Rated Currency(A)	9.1/10.0
Rated rotation speed(r/min)	3000/3600rpm
Power Factor(cos φ)	1
No load welding voltage(V)	65---70
Rated welding current(A)	50---180
Welding voltage (V)	25---30
Welding load continous ratio	60%
Electrode Diameter(mm)	2.4---4.0
Pole number	2
Insulation Grade	F
Excitation mode	Separate--excitation+AVR voltage regulation AVR
Rectifying mode	Diode
Connection mode	Drive bearing,rigid connection
Engine Model	RJ186FAE
Type	Single Cyliner,vertical,four stroke,direct injection,air cooled
BoreXStroke(mm)	86*72
Displacement(ml)	418
Compression Ratio	19:1
Rated Power(KW/rpm)	5.7/3000 6.3/3600
Rated Speed	3000/3600
Lowest rotation speed at zero load(r/min)	≤1300
Lubricating System	Pressure Splashed
Starting System	Recoil Starter/12V Electric Starter
Fuel type	0#(summer)--10#(winter)-35#(chillness) diesel
Lube oil capacity(L)	1.65
Battery capacity(V-Ah)	12V--30Ah
Fuel consumption(g.kw*h)	≤280
Fuel tank capcity(L)	15.0
Continous running time(hr)	6.5
Overall Dimension(mm)	730*495*655
Gross Weight(kg)	105

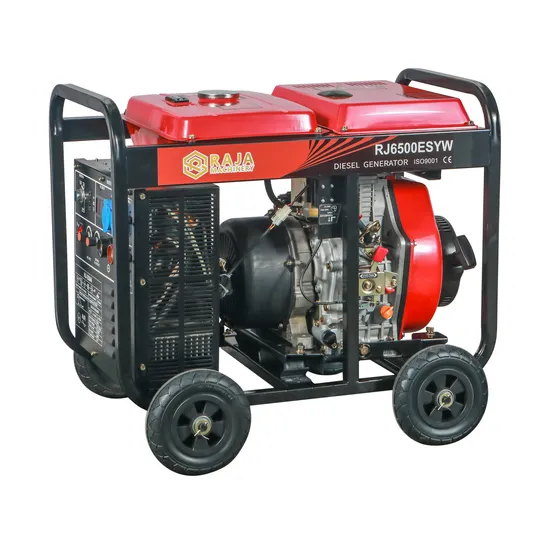

2.Detailed Images:

3.Product Features:
-----Easy and quick start, Simple Operation
-----One unit for multiple purpose.
-----High current&high welding capacity
-----Powered by high-performance
-----100% cooper motor
4.Application of welding generators:
-----Home used welding
-----Maintenance station special welding
-----Outdoor pipe welding
-----Professional plate welding
-----Construction site electricity supply
-----Rail welding
5. Certifications:

6.Company Information

7. Packing&Shipping

7. FAQ
1. Q: What is the minimum order quantity?
A: Our MOQ is 50sets for machines,500sets for spare parts.
2. Q: What payment way do you accept?
A: We accept T/T, LC,Western Union,Money Gram,Paypal etc
3. Q: What are your payment terms?
A: In principle T/T 30% as deposit, 70% as BL copy.
4. Q: Do you have samples?
A: Sample order is acceptable, but due to the high value of the engine, we cannot accept free of charge in principle.
5. Q: What is your delivery time?
A: Our delivery time is 25-30 days after we receive deposit or L/C.

---
