Zenith Small Portable Rock Jaw Crusher with CE Approved

Product Description

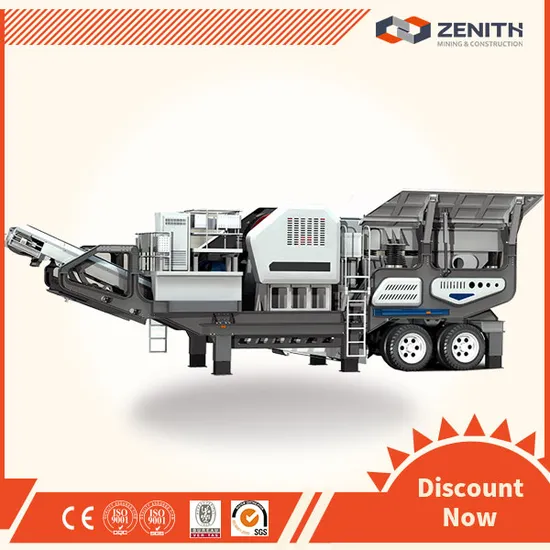

Overview of Small Portable Rock Jaw Crusher

Portable type series Small Portable Rock Jaw Crusher is developed according to novel series stone Crusher Equipment's design idea, which expands the concept field of coarse crushing and fine crushing. Jaw Crusher Series mobile crusher plant is our company's newly developed ore-Crusher Equipment that greatly expends the concept of crushing field. The design of Zenith Small Portable Rock Jaw Crusher gives priority to smoothing out the obstacles of uneven ground, improving producer's efficiency and reducing the cost .

Small Portable Rock Jaw Crusher Working Principle:

The main station and crushing equipment for crushing tyre mobile (optional jaw crusher, impact crusher, cone crusher, impact crusher machine), material feeder uniform delivery to the crusher preliminary broken, was later by the circular vibrating screen form a closed system, realize the circulation of the material crushing, meet size requirements of material from the conveyor output, so as to achieve the purpose of production. The Small Portable Rock Jaw Crusher can be based on actual production the need to remove the circular vibrating screen, and directly to the material preliminary broken, and then with other crushing equipment for specific operation, convenient, flexible.

Small Portable Rock Jaw Crusher Main features

1.Equipped with a large jaw crusher main engine device, boasting a large crushing ratio and a pioneering crushing force.
2.Effective and reliable HJ series high-energy jaw crushers.
3.Compact frame chassis, able to shorten the transportation length.
4.From single application to multiple-in-one application.
5.Global on-site customer service.
6.The preliminary screening function enables the complete set to have a more powerful capacity.
7.Adaptive main engine device switchover can meet customers' personalized needs.
8.Flexible parking function, quick access to the working mode.

Small Portable Rock Jaw Crusher Technical specifications

Model	Specs. of screening equipment	Specs. of crushing equipment	Specs. of main belt conveyor	Hopper volume(m3)	Max.feeding size (mm)	Transportation dimension(mm)
KE600-1	TSW0936	PE600×900	B800×8.3m	5.3	500	12150×2600×3950
KE750-1	TSW1139	PE750×1060	B1000×8.5m	7	630	13000×2850×4400
KE760-1	TSW1139	PEW760	B1000×8.5m	7	640	13000×2800×4200
KE860-1	TSW1345	PEW860	B1200×9.5m	8	720	14600×3000×4500
KE1100-1	TSW1548	PEW1100	B1400×9.5m	11	930	14050×2900×4000
KJ98-1	TSW1139	HJ98	B800×8.3m	5.9	560	12150×2600×3950
KJ110-1	TSW1345	HJ110	B1000×8.5m	8.5	660	13200×3000×4400
KJ125-1	TSW1345	HJ125	B1400×9.5m	8	800	14600×3000×4500
KF1214II-1	TSW0936	PFW1214II	B800×8.3m	5.3	500	12150×2600×3980
KF1315II-1	TSW1345	PFW1315II	B1200×9.5m	8	600	14600×3100×4500
KF1415II-1	TSW1548	PFW1415II	B1200×9.5m	11	700	14050×3000×4000

---
