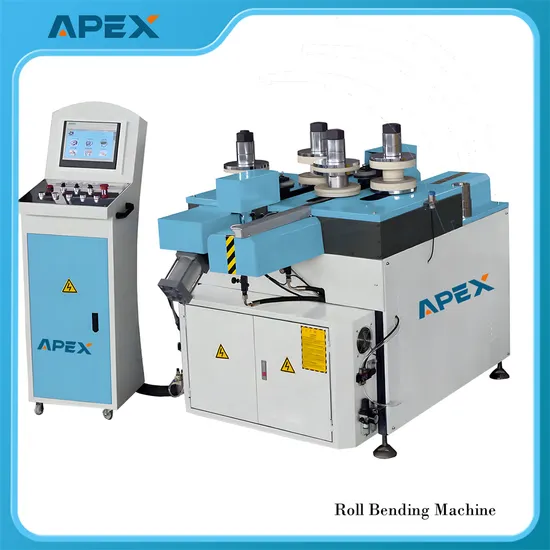

Auto Best Selling Horizontal 3 4 Axis CNC 30t Heavy Duty Beam Rolling Machine

Product Description

Technical Parameters

Model	LWYJ-80-40T	LWYJ-80-30T	LWYJ-60	LSWYJ-60/65
Power supply	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Input power	13KW	12KW	7.5KW	10KW
Working pressure	0.2Mpa	0.2Mpa	0.2Mpa	0.2Mpa
Min diameter of bending	200mm	180mm	60mm	60mm
Max width of profile	180×320mm	150×320mm	150×180mm	150×180mm
Max diameter of rolls	280mm	230mm	230mm	200mm
Lower shaft center-dimensions	500-920mm	485mm	380mm	350-750mm
Hydraulic cylinder pressure	40T	30T	20T	20/25T
Rolls-holding shaft diameter	80mm	80mm	60mm	60/65mm
Rotation speed of shaft	1-8r/min	1-8r/min	1-8r/min	1-8r/min
Positioning precision	±0.01mm	±0.01mm	±0.01mm	±0.01mm
Top roll runout	300mm	200mm	260mm	200/280mm
Torque	4500N.m	6000N.m	3500N.m	2500N.m
Overall dimension	1840*1360*1350mm	1950*1380*1620mm	1570*1000*1275mm	1300*1100*1500mm
Machine weight	2500kg	2200kg	1600kg	1000kg
Model	LWYJ-60/65	LLWYJ-60/65	LWYJ-130-65T	LWYJ-30
Power supply	380V/50HZ	380V/50HZ	380V/50HZ	380V/50HZ
Input power	5.2KW	5.15KW	22KW	1.85KW
Working pressure	0.2Mpa	0.2Mpa	0.2Mpa	0.2Mpa
Min diameter of bending	60mm	60mm	200mm	30mm
Max width of profile	150×180mm	150mm	200×400mm	90mm
Max diameter of rolls	200mm	180mm	300mm	90mm
Lower shaft center-dimensions	350-750mm	350mm	630-1300mm	85mm
Hydraulic cylinder pressure	20/25T	20T	65T	Mechanical transmission
Rolls-holding shaft diameter	60/65mm	60/65mm	130mm	30mm
Rotation speed of shaft	1-8r/min	1-8r/min	1-8r/min	1-8r/min
Positioning precision	±0.01mm	±0.01mm	±0.01mm	±0.01mm
Top roll runout	200/280mm	150mm	390mm	90mm
Torque	2500N.m	2500N.m	9000N.m	1750N.m
Overall dimension	1300*1100*1100mm	1000*800*1600mm	1840*1780*1660mm	1010*560*1035mm
Machine weight	1000kg	800kg	3000kg	400kg

Our Advantages
Product details and features
Production Process
Packaging & Shipping
Company Profile
After Sales Service
1.One year warranty time, we can repair and replace parts for free in one year.
2.Technical support in 24 hours online, TM, Skype, E-mail, solving the relative questions in time.
3.Life time free maintenance service.
4.Free training course at our factory with professional engineers.
5.We provide the consumable parts at agent price when you need replacement.
FAQ
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: JINAN Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.

---
