Product Details
Product Description
Product Description

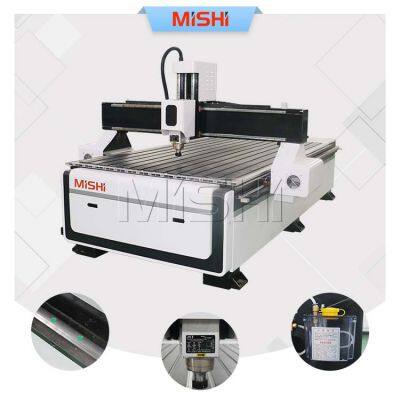

CNC Router Woodworking Machine
|
Machine Type
| 1212/1325/1625/1825/1530/2040 CNC Router
|
Table Size
| 1300*2500/1600*2500/1800*2500/1500*3000/2000*4000mm
|
Countertop Structure
| Aluminum Profile Counter Top (Option: Vacuum Table)
|
Bed Structure
| Welded Steel
|
XYZ Transmission
| X,Y Rack & Pinion Driver, Z ball Screw Transmission
|
Guide
| 20 Square Rail
|
Maximum Empty Travel Speed
| 17000mm/min
|
Working Speed
| 15000mm/min
|
Spindle Power
| 3/3.2/5.5/7.5kw JST/HQD/HSD Water Cooling spindle(Option: 3.5/6KW JST/HQD/HSD Air Cooling Spindle)
|
Spindle Speed
| 0-24000rmp(18000rmp)
|
Driver And Motor
| Stepper/ Hybrid-servo/Servo(Leadshine /Delta /YASKAWA)
|
Operating Voltage
| AC220V/380V, 50HZ/60HZ
|
Run Command
| G Code
|
Operating System
| DSP/NC Studio/ NK105 / Mach 3
|
Distribution Cabinet
| Independent Cabinet / Inner Cabinet
|
Support Software
| Type 3,Artcam,JD
|
Assist
| Dust Hood, Dust Tube
|
*The size, color, configuration and design can all be customized according to customer's requirements.
|
Application
1. Woodworking
Processing of various furniture such as door, window, cabinet, craft wood door, screen, etc.
2. Advertisement Engraving and cutting various labels and number plates.
3. Art craft Engraving characters of any language and graphics on gifts and souvenirs. Balustrade, furniture legs st-air railing, cylinder items, handrail, desk or chair legs, the human body, avatar, 3D cylinder mold, and a variety of rotational symmetry.
Applicable Materials Wood, aluminum board, plastic, density board, wave board, PVC, acrylic, crystal, light marble, and other nonmetal materials and light metal materials.
(1) Machine body design with high strength and double driving motors of Y axis, which have more reaso-nable design, fast processing speed, easy-operated maintenance, and low fault rate. (2) Advanced CNC processing system has powerful functions and humanized operation, as well as can receive data through U disk or network. (3) Imported and high precision linear guide rails have features such as stable operation, high precision, and steady support, which prolong the service life of machines. (4) Z-axis adopts imported ball screw with industrial level can positioning accurately and make processi-ng effects more perfect. (5) Energy-saving vacuum absorption table function and dust collectors can protect the environment. (6) Software has good compatibility. The machine can be compatible with various CAD/CAM designs & making software such as TYPE3, Artcam, JD, UG, MasterCAM, PowerMill, and So on.
>>
