Glimpse Technology 20 high mill China manufacturer
The 20 high mill is suitable for cold rolling high-strength steel materials such as stainless steel, silicon steel and carbon steel, and is the best choice for precision stainless steel strip rolling. Glimpse Technology is one of the major Chinese manufacturers of 20 high mill in China.
The 20 high mill has the advantages of high rolling thickness accuracy, good flatness, and excellent strip shape.
The 20 high mill has a high level of automation, saving labor costs and high efficiency.
For rolling stainless steel materials, the reduction rate is above 90%, and the rolling speed is 700 m/min; the maximum reduction rate for rolling carbon steel materials is above 95%, and the rolling speed reaches 800 m/min. The rolling output thickness is as thin as 0.03 mm.
Main parameters
Maximum rolling speed: 800 meters/minute
Minimum rolling thickness: 0.03 mm
Maximum rolling width: 1675 mm

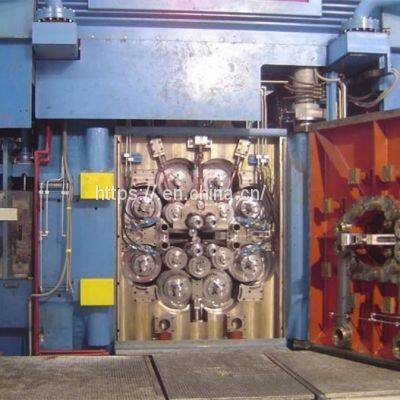

Roll system of 20 high mill
Layout of 20 high mill

Model Selection table
Rolling material	Stainless steel, silicon steel, high -carbon steel, alloy steel, copper, etc.
Chinese model	Corresponding foreign models	Working roller mm	Back up Roller MM	Width/mm	Minimum thickness mm
350-550	ZR-33	28	160	Min220/Max550	0.03
550-750	ZR-23	40	225	Min450/Max750	0.05
850-1050	ZR-22	63.5	300	Min480/Max1050	0.08
1300	ZR-22	63.5	300	Min660/Max1320	0.08
1600	ZR-21	80	406.4	Min840/Max1675	0.15

Typical models of 20 high mill
1. 1450mm 20 high mill (AC inverter motor) Main parameters:
Material grade: stainless steel
Strip thickness: 5.0-0.15mm
Strip width: 800-1,300 mm
Rolling speed: 800 m/min
Diameter of work roll:80 mm
Diameter of back up roll bearing: 406.4 mm
Rolling force:10000 kn
Main motor power:5000 kw
Coiling motor power:8000 kW (two 4000kW)
2. 1450mm 20 high mill (DC motor) Main parameters:
Material grades:stainless steel
Strip thickness:3.0-0.10mm
Strip width: 800-1,300 mm
Rolling speed:600 m/min
Diameter of work roll:63 mm
Diameter of back up roll bearing:300 mm
Rolling force:8000 kn
Main motor power: 3000 kW (two 1500kW)
Coiling motor power:3000 kW (two 1500kW)
