Zys Cold Roll Forming Machine/Bearing Cold Rolling Machine/Cold Heading Machine PCR90

Product Description

ZYS Cold Roll Forming Machine/Bearing Cold Rolling Machine/cold heading machine PCR90

Product Description
ZYS cold rolling machine adopts the double working positions of rolling and sizing, and organically combines the control system, the hydraulic system and the mechanical structure through symmetrical structure, reliable shafting, suitable hydraulic proportional loading mode, fast and reliable magneto-electric detection system and stable electric control system. The machine layout is right feeding and left discharging.
The mechanical structure of the machine is of high-rigidity design, and the symmetrically arranged shafting support is the basic guarantee. The application of active measurement technology makes the machining process under full tracking and control. Besides, the rounding device makes the geometry of the work piece in the rolling process good.
The hydraulic system consists of pump station and proportional control system. The pump station integrates imported constant pressure variable pump (main rotary pump) and directional valve, pressure reducing valve, speed regulating valve, overflow valve, one-way valve, pressure sensor, as well as other auxiliary components and oil tank. The proportional control system is composed of a highly reliable proportional speed valve and a proportional controller. The hydraulic system is cooled by water.
The electronic control system is composed of a controller and the power supply. The controller is formed by MITSUBICHI's PLC controller and its extended module, and the touch screen panel. Its function is to give instructions based on the set and detected signals to complete the control of the working process.
1. Machining range
PCR-90B Max. OD after rolling: 90mm. Min. ID before rolling: 20mm. Max. width: 30mm.
2. Machining accuracy
Accuracy of cold-rolled parts (after sizing): OD tolerance ±0.05mm, taper and roundness 0.1mm, squareness 0.15mm, wall thickness difference 0.05mm.

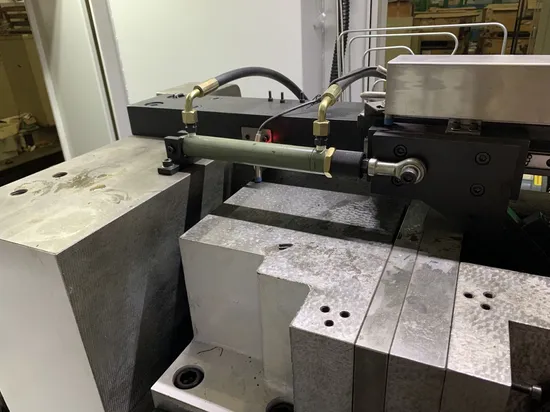

Detailed Photos

Company Profile
Luoyang Bearing Research Institute Co., Ltd. is a hightech enterprise specializing in the development of "highrank, precise, advanced, unique,
special" bearing products for the key units in various fields of national economic construction. Its predecessor, Luoyang Bearing Research Institute, was established in 1958. It is the only state level comprehensive research institute in China's bearing industry. In 1999, it entered China National Machinery Industry Group Co., Ltd. and transformed into a science and technology enterprise.
We focus on developing high performance bearing products for key units of national economic construction. We perform batch production of
various highrank bearing products and components with inner diameter of 0.6mm to outer diameter of 6.8m. We are mainly engaged in the research, development, production and sales of precision bearing, special bearing, highspeed machine tool spindle, bearing special equipment, bearing testing instruments, bearing testing machine and bearing special materials, which are widely used in the fields of machine tools, wind power generation, mine metallurgy, petrochemical, medical equipment, automobiles and rail transit, construction machinery, intelligent manufacturing services, etc.
We have total assets of 2.06 billion RMB, own one research and development center, three industrial bases and cover an area of more than 47
hectares. We have advanced bearing manufacturing equipments and world first class testing equipments and have solid strength in manufacturing, measuring and testing of bearing and related components with high precision and high reliability. We have more than 380 technical staff of bearing related disciplines, thus we maintain a leading position in the aspects of bearing design, basic theoretical research, lubrication technology, metallic and non-metallic materials, testing and industry standards.

Our Advantages
Many scientific research centers, laboratory and service agencies are set in our company, including National Bearing Quality Supervision and
Inspection Center, National Bearing Accreditation Laboratory, Industrial (Rolling Bearing) Product Quality Control and Technical Evaluation
Laboratory, National Rolling Bearing Standardization Technical Committee, ISO/TC4 Domestic Technology Responsible Unit, China Bearing
Industry Association Technical Committee, Machinery Industry Occupational Skill Identification Bearing Industry Subcenter, National Rolling Bearing Industry Technology Innovation Strategic Alliance, High end Bearing Tribology Technology and Application NationalLocal Joint Engineering Laboratory, State Key Laboratory of Shield Machine and Boring Technology (Bearing), Machinery Industry Highspeed Precision Bearing Engineering Research Center, Henan Province Machine Tool Spindle Unit Engineering Research Center, Henan Province High Performance Bearing Technology Key Laboratory, National Postdoctoral Research Workstation, Henan Province Bearing Generic Technology Academician Workstation, State Intellectual Property Office Patent Exchange Station and so on. We have so far achieved 908 major scientific research achievements, among which there are 31 awards of National Invention Awards and National Science and Technology Progress Awards, and 234 awards of provincial scientific and technological achievement awards.We have attained 792 granted patents, among which there are 277 patents for inventions. In addition, we established and revised the bearing industry technical standards for over 670 times, and also issued 457 volumes of "Bearing" magazine.
Glory
Top 200 most promising companies of China in Forbes
Top 500 in China Machinery Industry
Excellent Enterprise with China Well-know Trademark
High-performance Bearings Laboratory
State Quality Supervision and Testing Center for Bearing
ISO/TC4 China Secretariat
The Research Center for High-speed Precision Bearing Engineering in Machinery Industry...
