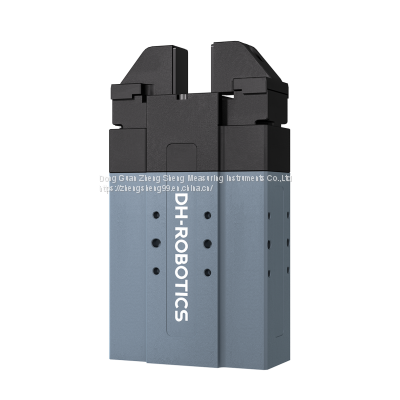

Servo-Electric Grippers PGE-8-14

Product Details

Product Description

Product Description
Product features
1.Small size/flexible installation
2.A quick response
3.Accurate force control
Application scenarios
Scenarios with demand for force control and flexibility, such as assembly, sorting and loading and unloading applications in semiconductor, 3C electronics, medical automation and other industries。
Technical parameters
Hold power(one side) ：2~8N
Total trip ：14mm
Maximum recommended load ：0.1kg
Open/close time : 0.2s/0.2s
Position repetition accuracy : ±0.02mm
Running noise：＜40 dB
The weight of the : 0.4kg
The transmission way ：The gear and rack+Cross roller rail
size : 97mm×62mm×31mm
Runtime environment
Working voltage ：24V DC±10%
Ratted current ：0.4A
Peak current ：0.7A
Protection grade ：IP40
Recommended Work Environment ：0~40°C，85%RH The following
In line with international standards ：CE,FCC,RoHS

---
