| Appearance | |||
| Item | Spec | Description | Optional |

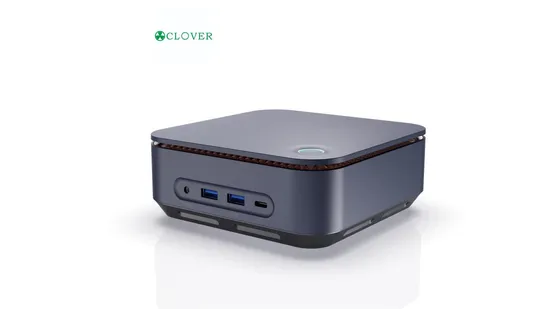

| Product Form | Product Form | MINI PC | |
| Dimension | 128.4mm*128mm*39.7mm | ||
| Shell Material | Plastic | ||
| Hardware | |||
| Item | Spec | Descrition | Optional |
| CPU | Type | Intel Tiger Lake i5 1135G7 ; i7 1165G7; i3 10100 | |
| Frequency | 2.4GHz ( 1135G7) ; 2.8Ghz(1165G7 ) | ||
| Turbo Frequency | 4.2GHz (1135G7) ; 4.7GHz(1165G7 ) | ||
| Power | 28W (1135G7); 28W(1165G7 ) | ||
| Memory | Type | 2xSO-DIMMDDR4 | |
| Capacity | 2xSO-DIMMDDR4 Max 64GB | ||
| Storage | EMMC | No support | |
| SSD | M.2 2280 MVME/ NGFF,Max 2TB | ||
| 2.5" SSD | Support Max 2TB | ||
| TF card | NA | ||
| RTC | BIOS support | Real time clock,power on by timer | |
| Auto power on | BIOS support | Support auto power on when plug power | |
| Diskless Network | BIOS support | support uefi boot | |
| TPM | CPU integrated TPM | support TPM 2.0 | |
| Dual Display | video output | support HDMI+DP dual display output | |
| Network | |||
| Item | Spec | Description | Optional |
| WIFI | Type | M.2 E_key intel 7265/ 3165 | |
| Protocol | IEEE 802.11 a, b/g, n, ac | ||
| Bluetooth | Type | M.2 E_key intel 7265/ 3165 | |
| Protocol | Support Bluetooth 4.2/5.0 | ||
| 3G | Built-in | No | Optional |
| 4G | Built-in | No | optional |
| Ethernet | LAN1 | 10M/100M/1000M self-adaptive LAN card | |
| I/O PORTS | |||
| Item | Spec | Description | optional |
| USB | USB2.0 | No | |
| USB | USB3.0 | USB3.0 Type-A*4 | |
| TF | TF card extension | No | |
| HDMI | Audio/Video Output | HDMI 1.4b Type A x1 | |
| VGA | Video output | No | |
| DP | Audio/Video Output | DPx1 | |
| RJ45 | 1000mbps Ethernet | RJ45 x1 | |
| type_c | Data transfer | 1*Type_c full function, suport data transfer/video&Audio output | |
| POWER Switch | Power button | Power on/off buttonx1 | |
| DC IN | power input | 5.5/2.1mm DC Jack x1 | |
| Audio-in/out | Audio-in/out | 3.5mm Phone Jack x1 2in1 port | |
| Antenna1 | FPC antenna | WiFi 5.0Ghzx1 | |
| Antenna2 | FPC antenna | WiFi 2.4Ghz+BT x1 | |
| Software | |||
| Item | Spec | Description | Optional |
| OS | version | Win10 pro/Win11 pro/Ubuntu | |
| Accessories | |||
| Item | Spec | Description | Optional |
| Adapter | Wall charger | Input 100~240V 50/60Hz Output:19V/3.42A DC pin: 5.5*2.1mm | |
| IR Remote control | No | ||
| VESA mount | support | ||
