Construction Building Material Lifting Machine Mini Crane with Small Mini Sliding Pulley Wire Rope Pulling Hoist

Product Description

Product Description

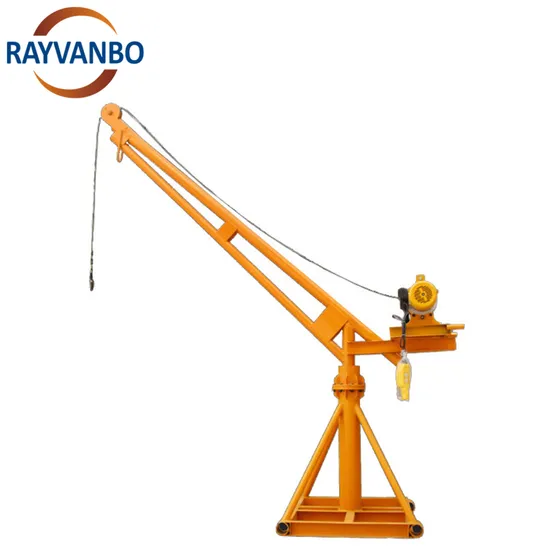

Outdoor cranes are also called small cranes, portable cranes, mini cranes, electric cranes, etc.Portable cranes are small in size, light in weight, compact in structure and easy to operate. Using 380V/220V voltage, it is suitable for decoration, lifting operations, installation equipment, moving companies, factories, workshops, light industry, heavy industry, maintenance, warehouse, logistics, etc
Structural features of outdoor crane:
This product is small in size, light in weight, compact and easy to operate. It uses 380V/220V voltage and is suitable for decoration, lifting operations, installation equipment, moving companies, factories, workshops, light industry, heavy industry, maintenance, warehouses, logistics, etc. The machine is composed of two parts: power unit and bracket.
1. The power unit is composed of a motor, a reducer, a clutch, a brake, a rope drum and a steel wire rope. The motor is a magnetic single-phase capacitor motor, which is designed with a mechanism that brakes when the power is turned off; the motor is also equipped with a thermal switch, and the reducer is a two-stage gear reduction, which is fixedly connected to the motor; the brake and the fly tube are installed as a whole, which can be To achieve rapid decline.
2. The support part is composed of the main support rod and the cantilever boom. The rotating arm can rotate 360 degrees on the main pole, and a travel switch is provided at the end of the arm to prevent lifting accidents caused by operating errors or button failure. Operate the button starter to realize the forward and reverse rotation of the motor. The wire rope can be wound and released, and part of the bracket is hoisted by pulleys, and the objects are lowered to complete the hoisting operation.
Product Details
Product Advantages
Packaging & Shipping
Product Application
Any question will be sincerely and professionally handled! Waiting for your inquiry!

Product Parameters

Model	100-200		250-300		500-1000
Lifting weight (kg)	100	200	250	300	500	800	1000
Rope length(m)	12	12-30	12-30	12-30	30	30	30
Lifting speed (m/min)	12		12		14-18
Rated volt (v)	220		220		220/380
Power (w)	510	880	1050	1200	3000
Crane height (m)	2	2	2	2	2.1	2.8	2.6

About Us
FAQ
Q1: What are you? Trade Company or manufacturer?
We are both manufacturer & trading company

Q2: What's the advantage of your company?
We've experienced manufacturer and overseas dealer. Our products have been exported to over 110 countries.
An independent research team especially focusing on crane and hoist design upgrade. A professional service
team for customers will provide feedback within 24 hours.

Q3: What's the sample & MOQ to your company?
Sample order MOQ can be 1 set and the product you ordered will be sent in a week as long as inventory is available.

Q4: Can I customize the product according to my own willing?
Yes, OEM/ODM are available, we can customize as customer's request.

Q5: How is the package during transportation?
Composite wooden crate for the electrical parts, waterproof cloth for the steel structure, then packed in a metal crate.

---
