Hollow Fiber UF Membrane Water Filter for Commerical Catering Industry

Product Description

UF Water Filter System for Commerical/Catering Industry
Description:

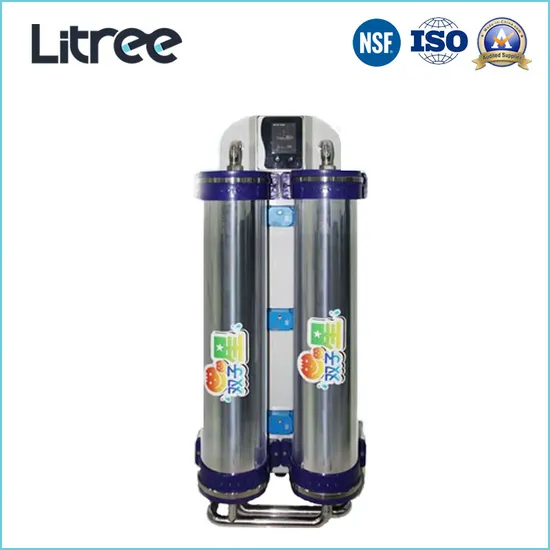

LITREE Double-star commercial UF system (type: LU3A1-82C) based on the parallel connection of two sets of LH3-8Gd, accompany with microcomputer controller and pressure tank, realize automatically feed-in, discharge, washing.
Features:
Micro-Computer Control
Auto-Backwash function designed
High flux and continuous duty
- Remove rust, bacteria, virus, colloid and other impurities; Keep mineral maters and trace elements, effluent water quality match drinking water standard.
- Wall type design, save space and easy for installation.
- Microcomputer automatically backwash program, prolong the lifespan of membrane, reduce the operation cost.
- LCD display, directviewing and convenient.
- Remain manually washing function, do manually washing upon operation situation.
- Washing frequency could be adjusted freely.
Application:
To satisfy the water purification demands of high flux commercial/ catering industry.
Specifications:

Product composition:
Control part: Microcomputer controller
Filtration part: LITREE UF filter
Backwash part: Pressure tank

	Item	Specification
Controller part	Controller	Microcomputer
	Washing frequency	Default or customize
	Washing time	60s
	Power	DC 12V

Filtration part	UF filter	LH3-8Gd
	Electrically operated valve	3-5V/G3/4
	Main pippes	SSL304
	Connect pipes	PPR
	Pressure tank	6.5Gallons

Technical part	Required raw water	Mains water
	Design flux	4000L/hr
	Operation pressure	0.8~0.35bar
	Water temperature	5~45
	Connector size	G3/4
	Dimension	650*350*1200mm
	Weight	≤ 37kgs
	Installation requirements	floor drain, AC220V/50Hz
	Energy consumption	≤ 15W

About us:
Structure:
Installation flow chart:
Application:

---
