Product Details
Product Description
Product Description
Product Overview

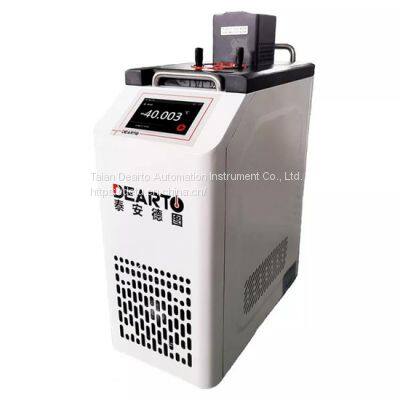

DTS-BG ultra-portable intelligent thermostatic oil bath
DTS-BG ultra-portable intelligent constant temperature oil bath is a high-precision automatic control temperature verification device, which has the characteristics of good temperature stability, uniform temperature field and high temperature control accuracy. Adopt fully enclosed compressor refrigeration system and intelligent PID adjustment to realize automatic temperature control. The bath is compact in structure, light in weight, easy to carry and durable. It is suitable for the on-site verification/ calibration of various types of industrial thermal resistance, low temperature thermocouples, armored thermocouples, working glass liquid thermometers, standard mercury thermometers, bimetal thermometers, pressure thermometers and other temperature sensors.
FEATURES AT A GLANCE
1.Small and portable, intelligent touch screen control, display temperature difference, fluctuation data;
2.Automatic segment temperature control, rapid temperature rise "zero" overshoot; micro-circulation technology, uniformity of temperature field.
3.Multi-point temperature calibration.
4.Temperature curve display, temperature data is automatically saved to U disk.
5.Equipped with overheating protection, safe and reliable temperature limiting function, and RS-232 communication interface can be connected to the host computer.
Operation interface
Stability running interface
Curve display interface
Setting interface
PRODUCT SPECIFICATIONS
Product name
| Intelligent micro heated thermostatic bath
|
Model
| GDTS-180BG
| GDTS-300BG
|
Temperature range
| 60℃~180℃
| 60℃~300℃
|
Control method
| Touch screen
|
Display resolution
| 0.001℃
|
Temperature fluctuation(10min)
| ≤±0.02℃(60℃) ≤±0.02℃(100℃)≤±0.03℃(200℃)≤±0.035℃(300℃)
|
Temperature uniformity
| ≤0.01℃ (60℃) ≤0.01℃ (100℃) ≤0.02℃ (200℃)≤0.02℃ (300℃)
|
Heating rate
| 6.5℃~11.5℃/min
|
Cooling rate
| 1.5℃~5℃/min（Natural cooling）
|
Work area size
| Φ80×280 mm
|
Dimensions（mm）
| 430(L)×225(W)×365(H)
|
Working medium
| Silicone oil
|
Remarks
| Flange size can be customized according to customer needs
|
