Microbulk (Cryo-Ease) Liquid Lin/Lox/Lar LNG Storage Vessel

Product Description

Microbulk(Cryo-Ease) Liquid LIN/LOX/LAR LNG Storage Vessel
cryogenic liqudi tank manufacturer workshop
The cryogenic vessels produced by our company are mainly cryogenic liquid storage tanks, welding insulation cylinder, cryogenic reaction device,cryogenic tanks, cryogenic ISO tank container and air temperature vaporizer. The welding insulation cylinders have a dozen varieties of products in the two series of common use and car use. We are the first domestic company that passed the indentification of product technology in 2001, and the production scale and product quality have been in a leading position in China since then. The company is one of the few manufacturers of transportable pressure vessel in China. The domestic advanced"austenitic stainless steel strain strengthening technology"has been sucessfully applied in the manufacture of China Standardization Committee on boilers and pressure vessels, and obtained the administrative licensing-approval. By AQSIQ,the strain strengthening of cryogenic container products were mass-produced,the quality met its design requirements, and the users were satisfied with their use.
The products are widely used in petrochemical, coal chemical industry, chemical, medicine, environmental protection, steel, power plant, medical, food, petroleum, electronics, gas, nuclear power and other related industries. It is the first mission of our employees to provide customers with quality, safe and reliable products and services. We alwasy adhere to the "quality first" as the company's core values and business philosophy. Our factory has outstanding performances in terms of security, stability and environmental protection, is trustworthy for providing system solutions, meeting critical mission needs and providing sound technical support.
Cryogenic Equipment Professional Manufacturer
Cryogenic Tank

Model	ICC-TC-18400/8	ICC-TC-1844/17	ICC-TCF16.2/1.6	ICC-TCC16/0.8	ICC-TCC16/0.8	ICC-TCC16/1.6
Design Pressure(Mpa)	0.88	1.68	1.60	0.80	0.80	1.76
Geometric Volume(m3)	20	20	16	18	18	18
Main Material	S30408/Q345R	S30408/Q345R	S30408/Q345R	S30408/Q345R	S30408/Q345R	S30408/Q345R
Thermal-insulating Type	High Vacuum Multilayer Winding Insulation	High Vacuum Multilayer Winding Insulation	High Vacuum Multilayer Winding Insulation	High Vacuum Multilayer Winding Insulation	High Vacuum Multilayer Winding Insulation	High Vacuum Multilayer Winding Insulation
Tank Size	6058X2438X2591	6058X2438X2591	6058X2438X2591	6058X2438X2591	6058X2438X2591	6058X2438X2591
Container Size	Φ2412X5950	Φ2412X5950	Φ2400X5936	Φ2416X5708	Φ2416X5708	Φ2416X5720
Weight(KG)	9360	11360	9950	10307	10307	12515
Container Class	C3	C3	C3	C3	C3	C3

Cryogenic Liquid CO2 Tank

Model	ICC-TCC20/2.4 CO2 Tank	ICC-TCFC13/2.2 CO2 Tank	ICC-TCC20/2.4 Food Grade CO2 Tank
Design Pressure(Mpa)	2.40	2.40	2.40
Geometric Volume(m3)	20	14	20
Main Material	16MnDR/Q345R	16MnDR/Q345R	S30408/Q345R
Thermal-insulating Type	High Vacuum Multilayer Winding Insulation	High Vacuum Multilayer Winding Insulation	High Vacuum Multilayer Winding Insulation
Tank Size	6058X2438X2591	6058X2438X2591	6058X2438X2591
Container Size	Φ2410X5926	Φ2320X5759	Φ2422X5926
Weight(KG)	12300	10380	13030
Container Class	C3	C3	C3

cryogenic liquid oxygen nitrogen argon tank head seal
Vacuum powder insulation cryogenic liquid storage tank is used for storage and supply of cryogenic liquid like liquid oxygen, liquid nitrogen, liquid argon and liquid carbon dioxide. It has advantages of area-saving, safe, reliable and convenient maintenance, ect.,and has been widely used in gas, chemical, mechanical, metallurgy, electronics,medical, glass, mining,nuclear power and other industries. The tank supplies cryogenic liquid form the bottom. It can be connected with the exterior vaporizer and cryogenic pump. It can also be designed and manufactured according to user's requirements.

Model	Effect Volume(m3)	Working Pressure(Mpa)	Evaporation(%)			Empty Weight(kg)	Dimension(mm)	Thermal Insulating Type
			LO2	LN2	LAR
CFL-2/0.8	2	0.8	≤0.67	≤1.0	≤0.7	2530	Φ1912X3295	Vacuum Powder
CFL-3/0.8	3	0.8	≤0.6	≤0.9	≤0.63	2972	Φ1912X3948	Vacuum Powder
CFL-5/0.8	5	0.8	≤0.435	≤0.65	≤0.46	3896	Φ1912X5254	Vacuum Powder
CFLS-5/1.6	5	1.6	≤0.435	≤0.65	≤0.38	3997	Φ1912X5254	Vacuum Powder
CFLP-10/0.8	10	0.8	≤0.36	≤0.55	≤0.38	6068	Φ2216X6460	Vacuum Powder
CFLS-10/1.6	10	1.6	≤0.36	≤0.55	≤0.38	6120	Φ2216X6460	Vacuum Powder
CFLP-15/0.8	15	0.8	≤0.35	≤0.53	≤0.37	7880	Φ2316X8048	Vacuum Powder
CFLS-15/1.6	15	1.6	≤0.35	≤0.55	≤0.37	7900	Φ2316X8048	Vacuum Powder
CFLP-20/0.8	20	0.8	≤0.33	≤0.5	≤0.35	9014	Φ2616X8061	Vacuum Powder
CFLS-20/1.6	20	1.6	≤0.33	≤0.5	≤0.35	9730	Φ2616X8061	Vacuum Powder
CFLP-30/0.8	30	0.8	≤0.29	≤0.44	≤0.31	11910	Φ2616X10993	Vacuum Powder
CFLS-30/1.6	30	1.6	≤0.29	≤0.44	≤0.31	12880	Φ2616X10993	Vacuum Powder
CFLP-50/0.8	50	0.8	≤0.23	≤0.35	≤0.24	18326	Φ3020X12657	Vacuum Powder
CFLS-50/1.6	50	1.6	≤0.23	≤0.35	≤0.24	20920	Φ3020X12657	Vacuum Powder
CFLP-100/0.8	100	0.8	≤0.16	≤0.25	≤0.17	31362	Φ3520X16956	Vacuum Powder
CFLS-100/1.6	100	1.6	≤0.16	≤0.25	≤0.17	36433	Φ3520X16956	Vacuum Powder
CFLS-200/0.8	200	0.8	≤0.13	≤0.2	≤0.14	68585	Φ4128X22700	Vacuum Powder

cryogenic liquid oxygen nitrogen argon storage tanks
LNG Storage Tank
Our factory designs and manufactures the whole series of vertical and horizontal LNG cryogenic storage tanks according to the GB150 and GB18442 standards applying vacuum powder insulation or high vacuum multi-layer insulation, the vessels are with good thermal insulation perfromance, compact structure, easy operation and maintenance. It's already widely used in the LNG vaporization station, peaking station, filling stations and liquefaction plants and other places.
Our factory also offers a series of engineering services and turnkey projects for various LNG gasification station design, equipment matching, system automation, engineering installation, debugging, trainning and after-sales service.

Model	Effect Volume(m3)	Working Pressure(Mpa)	Static Evaporation Rate(%)	Empty Weight(kg)	Dimension(mm)	Thermal Insulating Type
CFLP-10/0.8	10	0.8	≤0.55	6266	Φ2216X6700	Vacuum Powder
CFLP-15/0.8	15	0.8	≤0.53	7880	Φ2316X8443	Vacuum Powder
CFLP-20/0.8	20	0.8	≤0.50	10063	Φ2316X8297	Vacuum Powder
CFLP-30/0.8	30	0.8	≤0.44	14100	Φ2616X11463	Vacuum Powder
CFLP-50/0.8	10	0.8	≤0.35	18890	Φ2616X13318	Vacuum Powder
CFLP-60/1.2	60	1.2	≤0.32	23246	Φ3020X15550	Vacuum Powder
CFLP-100/0.8	100	0.8	≤0.25	36152	Φ3520X17786	Vacuum Powder
CFLP-150/0.8	150	0.8	≤0.225	48380	Φ3720X22834	Vacuum Powder

cryogenic liquid oxygen nitrogen argon storage tank on making
Cryogenic LCO2 Carbon Dioxide Tank

Model	Effect Volume(m3)	Working Pressure(Mpa)	Empty Weight(kg)	Dimension(mm)	Thermal Insulating Type
CFL-5/2.2	10	2.2	4755	Φ1916X5196	Vacuum Powder
CFL-10/2.2	15	2.2	7960	Φ2116X6900	Vacuum Powder
CFL-15/2.2	20	2.2	10260	Φ2316X8014	Vacuum Powder
CFL-20/2.2	30	2.2	12993	Φ2616X8061	Vacuum Powder
CFL-30/2.2	10	2.2	19580	Φ2820X9600	Vacuum Powder
CFL-50/2.2	60	2.2	27973	Φ3020X12660	Vacuum Powder
CFL-100/2.2	100	2.2	53995	Φ3520X17047	Vacuum Powder

mini cryogenic liquid oxygen nitrogen argon storage tank :1 to 5m3

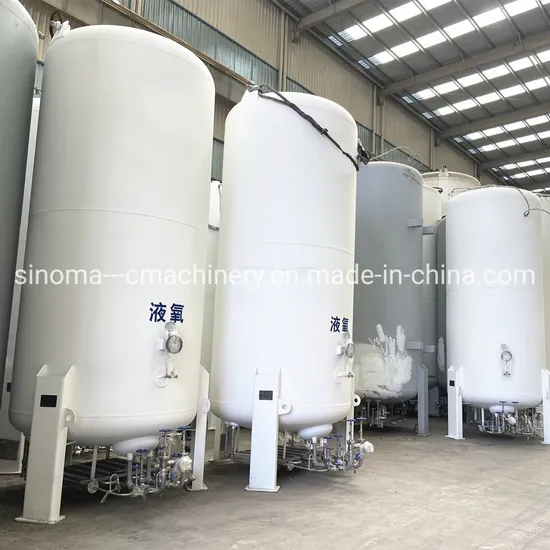

cryogenic liquid oxygen nitrogen argon storage tank in stock
cryogenic liquid oxygen nitrogen argon storage tank factory
The high pressure cryogenic pump is mainly used in various well cementing, acidification, well repair, well washing operation, well cutting operation, well head decompression and oil recovery and food industry of oil field, carbon dioxide huff and puff and food industry, supercritical extraction chemical industry, plastic foam molding, high pressure pipeline pressure test, high pressure container filling and so on.
cryogenic liquid oxygen nitrogen argon filling pump workshop
Welcome all the customers to visit our factory and cryogenic products production line working site.

---
