Radial Drilling Machine Z3050X16/1 Hydraulic Rocker Drilling Machine

Product Description

Product Description

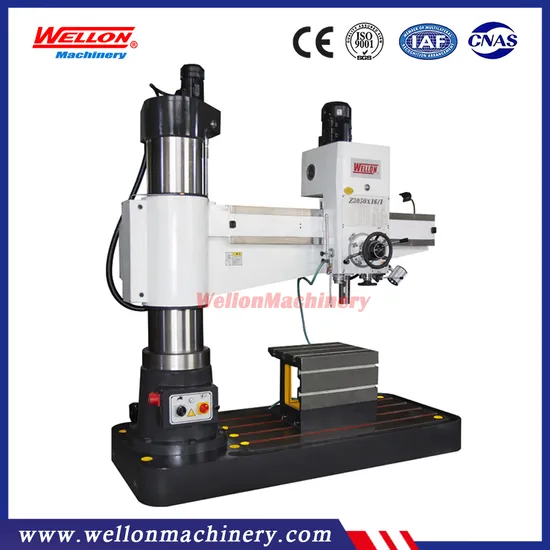

Radial Drilling Machine Z3050X16/1 Hydraulic Rocker Drilling Machine

Detailed Photos
Product Parameters

Gather mechanical-electrical-hydraulic functions, use extensively.
With wide range of speed and feed, with manual,power and fine feeds.
The feed of machines are very easily engaged and disengaged at any time.
With safe and reliable feed safety machine, all parts easy operation and change.
All controls centralized on the head stock easy operation and change.
Clamping for assemblies and speed change of spindle achieved by hydraulic power.
Main parts are made by machine center with high precision and efficiency, ensuring reliability and high quality.
Integrating technology for casting parts is excellent, adopting casting equipment, ensuring high quality of material for basic parts.
Spindle parts are made by special high quality steel heat treatment ensuring high strength and durability.
Main gears are all precision grind, ensuring high precision and low noise.
Technical Parameter:

Model	Z3050×16/1
Max.drilling dia (mm)	50
Distance from spindle nose to base (mm)	320-1220
Distance from spindle axis to column (mm)	350-1600
Column diameter (mm)	350
Spindle travel (mm)	315
Spindle taper	MT5
Spindle speeds range(r.p.m)	25-2000
Spindle speed step	16
Spindle feeding rate(mm/min)	0.04-3.2
Spindle feeding step	16
Worktable dimensions (mm)	630x500x500
Base dimensions (mm)	2400x1000x200
Rocker rotary angle	360 degree
Main motor power (kw)	4
Lifting motor power (kw)	1.1
Weight (kg)	3500
Overall dimensions (cm)	260×112×260

Standard accessories: Box type worktableDrill chuckTaper sleeveWrench
Optional accessories: Spindle guardMachine vise




Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
