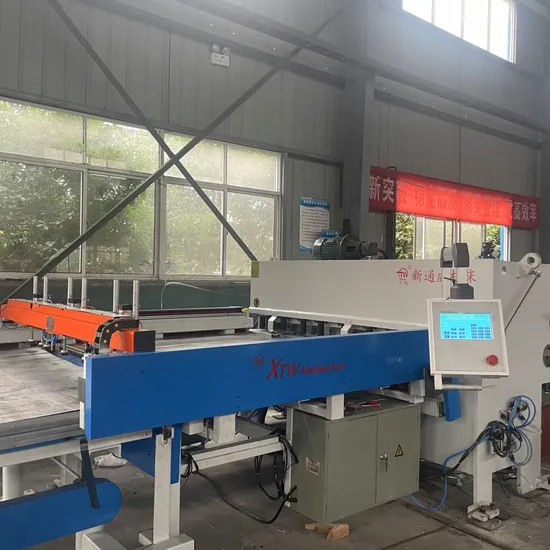

Automatic Shearing Center, Multi-Size Cutting, Servo Feeding, PLC Control

Product Description

Automatic Shearing Center, Multi-size cutting, servo feeding The motors for backgauge are controlled by inverter, which can achieve high positioning accuracy 0.05mm of the backgauge by changing the frequency and voltage of motor. Top blade with two cutting edges and bottom blade with four cutting edges (6CrW2Si). X axis(Backgauge) and cutting time can be programmed by E21S system controller, which can store up to 40 groups of programs. Hydraulic overload can be protected by overflow valve, knife rack returns by Nitrogen cylinders. Foot switch with emergency button can stop the machine immediately when accident happens. Adjusting knife gap between upper and bottom blades can achieve better cutting performance. Front arms with ruler and roll balls can ensure the cutting accuracy and feed the material easily. Specification:

Model	Shearing Thickness(mm)	Shearing Width(mm)	No. of Strokes	Backgauge Range(mm)	Shearing Angle	Main Power
QC12Y/K-4X2500	4	2500	18	20-600	1'30'	4
QC12Y/K-4X2500 High Speed	4	2500	34	20-600	1'30'	5.5
QC12Y/K-4X3200	4	3200	18	20-600	1'30'	5.5
QC12Y/K-4X4000	4	4000	12	20-600	1'30'	5.5
QC12Y/K-4X5000	4	5000	10	20-600	1'30'	7.5
QC12Y/K-4X6000	4	6000	7	20-600	1'30'	7.5
QC12Y/K-6X2500	6	2500	18	20-600	1'30'	7.5
QC12Y/K-6X3200	6	3200	14	20-600	1'30'	7.5
QC12Y/K-6X4000	6	4000	12	20-600	1'30'	7.5
QC12Y/K-8X2500	8	2500	14	20-600	1'30'	11
QC12Y/K-8X3200	8	3200	10	20-600	1'30'	11
QC12Y/K-8X4000	8	4000	8	20-600	1'30'	11
QC12Y/K-10X2500	10	2500	10	20-600	1'30'	11
QC12Y/K-10X3200	10	3200	10	20-600	1'30'	11
QC12Y/K-10X4000	10	4000	8	20-600	1'30'	11
QC12Y/K-12X2500	12	2500	9	20-600	1'30'	15
QC12Y/K-12X3200	12	3200	8	20-600	1'30'	15
QC12Y/K-12X4000	12	4000	8	20-600	1'30'	15

NANTONG XINTONGWEI MACHINE TOOL CO.,LTD Located in the eastern part of the Central Jiangsu Plain, "the hometown of Chinese shearing, folding and rolling machine tools" - Haian Libao. It is adjacent to the Yellow Sea in the east, the Yangtze River in the south, Xinchang Railway in the west, and close to the 204 and 328 national highways. The company was formerly known as "the original Haian County Haiwei Machine Tool Factory." Specializing in the production of "Tongwei" brand series of shearing machines, bending machines, rolling machines, leveling machines, slitting machines, uncoiling and leveling production lines and other sheet metal processing equipment .The company has a group of professionals who have been engaged in forging design for a long time. Through the strong alliance with various casting and forging research institutes and major technical research institutes, the product structure is continuously improved, and the application of new technologies is in a leading position in the same industry. , so that the performance of the whole machine reaches the international advanced level, and it is an ideal substitute for imported machine tools. In the past few years, the company has developed a number of new structures and new technologies, and applied for a number of patents. The products have passed the provincial and municipal quality and technical supervision and inspections for many times, and have won the honorary title of "Contract-honoring and Promise-keeping" enterprises. The company's products are widely used and sold throughout the country and exported to Southeast Asia, West Asia, Africa, and Russia in recent years. And other European countries, have a place in the European and American markets. The company adheres to the tenet of "Quality First. Service First. Reputation First", takes customer satisfaction as the operating principle, and insists on providing customers with thoughtful pre-sale, in-sale, and after-sale services.

---
