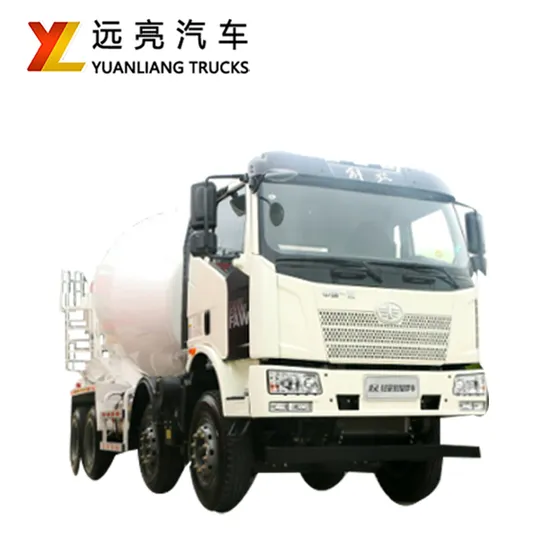

High-Performance Expert FAW J6l 325HP 8X4 7.8cbm Concrete Mixing Truck for Road Construction

Product Description

Specification parameters

Overall dimensions	9800×2550×3950(mm)	Rated load capacity	17120,17055(Kg)
Gross Vehicle Weight	31000(Kg)	ABS	standard configuration
Curb weight(kg)	13750(Kg)	Front/rear suspension	1400/2200(mm)
Approach/departure angle	21/18(°)	Front and rear Axle Load	6500/6500/18000
Wheelbase	1900+2950+1350, 2000+2850+1350(mm)	Number of axles	4
Maximum speed	89(km/h)	Number of spring pieces	10/10/11,8/8/11,3/3/11,9/9/11, 11/11/10,8/8/10,9/9/10,12/11/10, 4/4/4,4/4/5,3/3/4,10/9/11,10/9/10, 12/12/11,12/12/10,4/4/10
Number of tires	12	Tire Size	11.00R20,12R22.5,10.00R20, 11R22.5
Front track	1914/1914,1928/1928, 1950/1950,1985/1985, 2050/2050(mm)	Rear track	1878/1878,1900/1900(mm)
Engine
Engine model	Displacement(L)	Power (kw)/ horsepower (PS)	Fuel
CA6DK1-32E6	7146	239/325	Diesel
CA6DL6-38E68	8570	283/384	Diesel
CA6DL6-36E68	8570	268/364	Diesel
CA6DK2-35E65	7751	257/349	Diesel
CA6DK2-32E65	7751	238/323	Diesel
CA6DL6A38E68	8570	283/384	Diesel
CA6DL6B36E68	8570	268/364	Diesel
CA6DK2A35E65	7751	257/349	Diesel
CA6DK2A32E65	7751	238/323	Diesel
others
The agitation capacity is 7.8 cubic meters; Total tank length: 5,170 mm, Maximum diameter of 2,300 mm; The tank installation Angle is 14 degrees; The material of the side guard is Q235, Side protection and sub-frame welding; Material of the rear lower guard is Q235, bolting, Section size: 12,050mm, The ground height is 490mm; Install a driving recorder with satellite positioning function; ABS anti-lock braking system , Model number: CM4XL; The corresponding fuel consumption value of the CA6DK1-32E6 engine is 37.4L/100km, The corresponding fuel consumption value of CA6DL6A38E68 and CA6DL6B36E68 engine is 36.78L/100km, The corresponding fuel consumption value of CA6DK2-35E65, CA6DK2-32E65, CA6DK2A35E65 and CA6DK2A32E65 engines is 36.45L/100km; Change the face chassis with the chassis; Selected front cover, wide body bumper and secondary pedal; Aluminum alloy rim, air filter is optional with the chassis, Door handle can be optional with the chassis, fender, Without the Chinese faW logo, This model can be equipped with on-board ETC device, Installation position of optional urea tank, air unit and air cleaner along with the chassis, Optional U-type post-processing structure and installation position, Optional trim panels on both sides of the rear cab

Product Picture
Company Profile
Established in 2003 and headquartered in Shiyan City, Hubei Province, China, Shiyan Yuanliang Material Trading Co., Ltd. (hereinafter referred to as 'Shiyan Yuanliang') is a distinguished enterprise with over two decades of expertise in the specialized vehicle industry. Our company excels in the R&D, production, and sales of a diverse range of special vehicles.
At Shiyan Yuanliang, we pride ourselves on offering an extensive array of specialized vehicles tailored for urban development. Our portfolio includes municipal vehicles, engineering vehicles, rescue vehicles, and large manned vehicles, among others. These products are designed to cater to a variety of needs such as urban and rural sanitation, construction waste transport, and road rescue operations.
Compliance with China's national regulations and industry standards is at the forefront of our operations. All our products are duly certified with public announcements and quality assurances. Additionally, our commitment to quality, environmental sustainability, and occupational health and safety is evidenced by our ISO9001 Quality System Certification, ISO14001 Environmental System Certification, and ISO45001 Occupational Health Certification. These accreditations not only underscore our dedication to maintaining high standards in our management systems and product quality but also offer our customers extra assurance in their choice. Opting for Shiyan Yuanliang means making a decision for reliability, compliance, and sustainable excellence in specialized vehicles.

---
