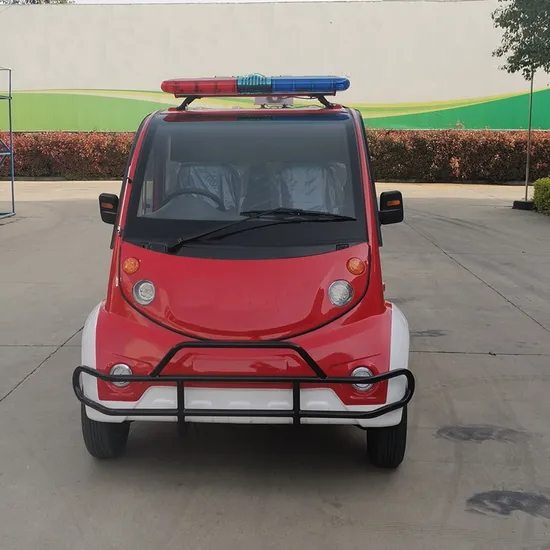

Tc1115f3 4-5seats Electric Modified Pickup Fire Patrol Car Import From China Cheap Fire Fighting Pumper 72V Fire Electric Cars for Emergency

Product Description

Electrical system	controller	AC asynchronous controller EVC550-5230
	Battery	Special maintenance-free battery for traction 6EVF-120AH (3hr)6pieces
	Motor	Special AC asynchronous motor 72V/5KW
	Charger	Computerized intelligent car charger 72V/18A, charging time <8 hours
	DC Converter	High power isolated DC converter 72V/12V-500W
Body configuration	Front shield and wiper	Automotive laminated glass, wiper blades
	Roof	Metal stamping one-time forming
	Cushion	Four-angle adjustable luxury PU fabric seat/(optional bus seat)
	Floor	Anti-slip floor leather
	Body	The body is a one-piece metal stamping shell, and the entire vehicle is pickled, phosphated, and cathodic electrophoresed. also beautiful and durable,lightweight and other unique advantages.
	Chassis	National standard building, integrated bending shot blasting
	rearview mirror	Adjustable for each hand,foldable exterior rearview mirror.
	Led light signal	Headlights, turn signals, reversing lights, brake lights,fog lights
	Dashboard	Blister foam molding instrument panel, electric vehicle combination meter, electric lock switch, combination switch, dual-speed wiper switch
	steering system	Two-way rack and pinion steering system, automatic gap compensation function, EPS electric power assist
	Brake system	Front disc and rear drum + hydraulic dual-pipeline braking system, vacuum electronic assist + handbrake parking
	suspension system	Front: MacPherson independent suspension Rear:Trailing arm coil spring
	audio speaker	USB playback host can be plugged in and dual speakers,Whistler, reversing reminder buzzer.
	wheel	165/70R13C+ wheel cover
Technical parameters	length*width*height	3950*1650*2005mm	curb weight	1080kg
	Rated number of passengers (people)	4-5	Trunk size	1150*300*800mm
	Maximum driving speed	≤30km/h	Trunk load	50kg
	Driving range	≥90(km)	minimum ground clearance	≥150mm
	Maximum grade	≤20%	Wheelbase	2790±10(mm)
	Slope holding performance	20%	Wheelbase (front/rear)	front1420mm/rear1420(mm)
	Minimum turning radius	≤5.2m	braking distance	≤5m
	Braking stability	1.9m	Energy consumption per 100 kilometers	8kwh
Optional parts	Additional parts : top conditioner + 3,000 RMB, LED display screen + 500 RMB, reversing driving recorder + 500 RMB, aluminum alloy wheels + 500 RMB, and car electric fan + 200 RMB. If other configurations are required, please contact us.

Jiangsu Trail-blazer Vehicle Industry Co.Ltd Jiangsu Trail-blazer Vehicle Industry Co.Ltd is a vehicle manufacturer specializing in personalized customization and refitting.The company has a strong background in automotive and all-terrain vehicle design technology, and broad ideas for new product development.
Trail-blazer has rich supply chain resources and is good at cross-border integration of supply chains Resources, to truly achieve the industry's most cost-effective products and the most professional services.
The price of our company's electric low-speed vehicles ranges from US$1,000 to US$7,000. With rich OEM experience and ODM capabilities, partial or complete vehicle customization can be realized. As a manufacturer that constantly develops new products ,we are always at the forefront of the industry.The tourist sightseeubg cars, patrol cars, fire trucks, street view cars, and various customized vehicles developed and produced by our factory have been well received by customers around the world. Our factory believes in the business philosophy of "independent research and development, leading technology, first-class service, and integrity-based". We have launched a series of electric special vehicles and obtained several patents. The products are exported to more than 30 countries on five continents around the world, and have won unanimous praise.we specialize in designing & producing golf buggy, the tourist sightseeing cars, patrol cars, fire trucks, Garbage removal truck, cleaning truck, street view cars, and various customized vehicles for 10 years.The company takes product innovation and development as the core competitiveness.including factory in-house advanced R&D and engineering teams. for producing quality vehicles at affordable prices.
Our team have been in the motorcycle industry for approximately 10 years and have gainedan extensive knowledge of golf cart and power sports industry.OEM and ODM orders welcomed!

For more needs, please click and communicate. FAQ Q1. Do you accept special request to customize the vehicles ? Answer: we could customize vehicles as per customer's special request with reasonable cost and delivery time. Q2. What is your warranty term? Answer: We provide 1 year warranty. for failed part under warranty, if it can be repaired at your side and the repair cost is lower than the valve of the part, we will cover the repair cost; otherwise, we will send replacements and cover the freight cost if any. Q3. Do you provide after service spare parts? Answer: Yes, we provide all the spare parts to our vehicles, even 8 years after we stop the production of the model. For your easier working to select the spare parts, we also supply parts list for you to choose the parts from . Q4. Do you provide technical support? Answer: we could customize vehicles as per customer's special request with reasonable cost and delivery time. Q5. Do you provide vehicle assembly service if we buy the vehicles in SKD or CKD ? Answer:we will supply the vehicle assemble guide manual , When the vehicle is in SKD way, the reassembly is just bolt and nut work, it is not difficult at all. Unless you have the assembly capability, we do not sell the vehicles in CKD way. If you do have bigger volume, we can give instructions via different ways when needed. Q6. Do you accept OEM order? Answer: Yes, we will accept. Q7. What are your terms to be your agent/dealer in my country? Answer: We have several basic requirements, firstly you shall be in electric vehicle business for some time; secondly, you shall have the capability to provide after service to your customers; thirdly, you shall have the capability to order and sell reasonable volume of electric vehicles. Q8: What is your payment term? Answer: For new customers, our typical payment term is 'T/T 30% deposit against order confirmation, T/T 70% before container loading' Q9: Why should you buy from us not from other suppliers? Answer: Our factory has strong manufacturing capacity, high quality control of products, cost control ability, who can offer high quality reasonable price products.

---
