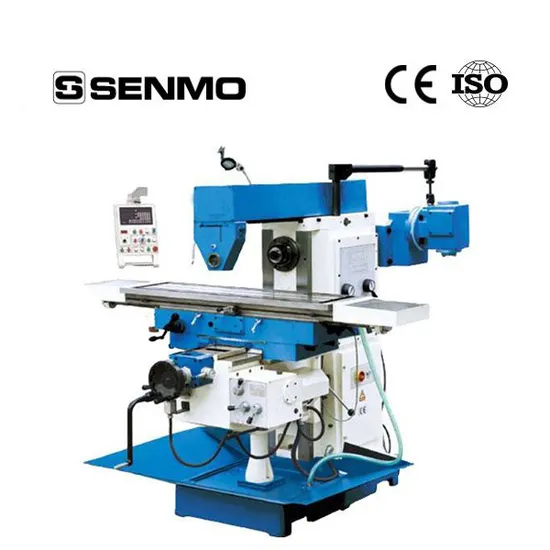

| Specifications | XW6136 |
| Table size | 1320x360mm |
| T slot | 5 |
| Size (Width) | 14mm |
| Centre distance | 95mm |
| Max. load of Table | 400kg |
| Swivel of table | ±35º |
| Table Longitudinal travel(manual/auto) | 1000mm |
| Table Cross travel (manual/auto) | 290/280mm |
| Table Vertical travel(manual/auto) | 400mm |
| Spindle taper | ISO50 |
| Spindle speed /step | 58-1800rpm/12 |
| Vertical spindle axis to column surface | 320mm |
| Vertical spindle nose to table surface | 0-341mm |
| Horizontal spindle axis to table surface | 0-400mm |
| Horizontal spindle axis to arm bottom | 175mm |
| Arm travel | 500mm |
| Longitudinal/cross feed | 22-420mm/min/8 22-393mm/min/8 |
| Vertical/step | 10-168mm/min/8 |
| Longitudinal/cross rapid speed | 1290/1205mm/min |
| Rapid Traverse vertical | 513mm/min |
| Main motor | 4kw |
| (X/Y/Z) feed motor | 1.1kw |
| Coolant motor | 0.09kw |
| Package dimension | 207x192x225cm |
| N.W/G.W | 2200/2500kg |
