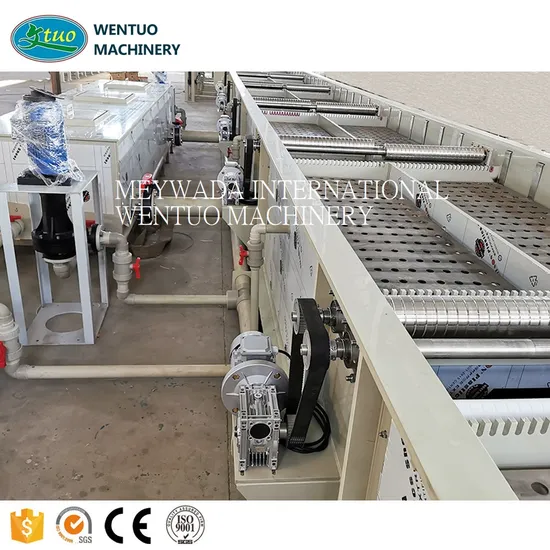

Electro Galvanized Steel Wire Machine

Product Description

Main Component of Machine:
1) Wire pay-off Machine from spool or Coil on Customer's Request;
2) On-line Continuous Annealing Furnace;
3) Water Rinse
4) Electrolytic Pickling Cleaning;
5) Water Rinse Unit
6) Electro Galvanizing Machine;
7) Water Rinse & Hot Water Washing
8) Wire Drying Machine;
9) Wire Take-up Machine: Horizontal coiler, Vertical coiler; Spooler on Request;
10) Rectifier & Control Panel
Galvanizing Machine Production Line

No.	Mono Wire	20-Wire	20-Wire	40-Wire
Soft Steel Wire	1.0mm~3.0mm	0.70mm~1.60mm	2.0~4.0mm	0.70~1.60mm
Zinc Layer	0~200um	0~200um	0~200um	0~200um
Speed	0~200m/min	0~120m/min	0~10m/min	0~10m/min
Motor Driving of Plating Machine	2.2KW AC	7.5KW AC	15KW AC	22KW AC
Wire Take-up Machine	15NM Torque Motor	15NM Torque Motor	5NM Torque Motor	5NM Torque Motor
Spool Size	DIN-630	DIN-630	DIN-500-630	DIN-500-630
Dimension	16.0m×1.50m×2.0m	29.0m×1.90m×2.0m	80m×2.0m×1.0m	100m×2.5m×1.0m
Weight	3000KG	12000KG	18000KG	23000KG

---
