Rectangular Lifting Electromagnet for Lifting Steel Plates

Product Description

Introduction:
Specially designed for lifting and transporting steel plate of medium-thickness. Considering possible bending and deforming may affect safe transportation when lifting long steel plate, please use the combination of several electromagnet. As to medium-thickness steel plate(6mm~32mm), the space length of electromagnets is 3~4m, the space length of extension parts of both ends is half of the space length.
Features:
According to lifting pieces, the series is divided into type 350 and type 400
** Type 350 is suitable for medium-thickness plate factory, ship building factory, and machinery manufacturing factory, it adopts magnet regulating control method, and can lift one piece or certain pieces of steel plate
** Type 400 is suitable for transporting as many as possible pieces at a time. According to customer's requirement, we also can design and manufacture high temperature type products which used for lifting and transporting steel plate below 700° C.
Overall dimension drawing:

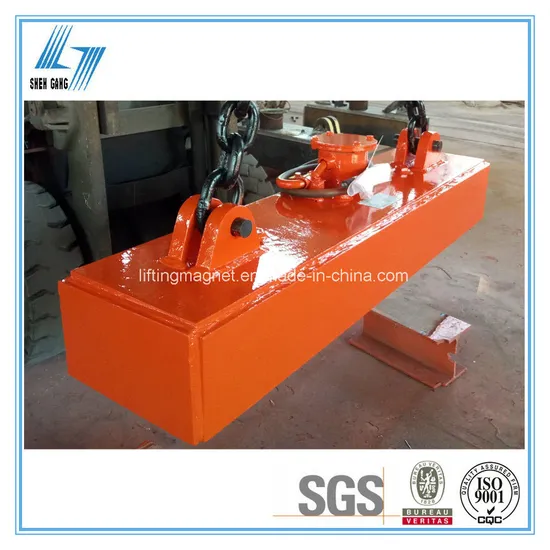

Product Photos:
About Enquiry:
To help you get the best electro lifting magnet for your application, we should have the following information:
--For steel plate:
1.What about the plate size: length, width and thickness?
2.How many plates need to be transported for one time?
3.How about the temperature of the plate,normal temperature or high temperature?
--For overhead crane:
1.How about the loading capacity of the crane, single beam or double beam?
2.What is the distance from crane to ground?
--Power supply information: Voltage, DC or AC? Frequency
(More details, please feel free to contact us directly. )
Technical Tata:

Model	Mass (kg)	Power (kw)	Lifting width ( mm )
			δ 6	δ 8	δ 10	δ 12	δ 16
MW84-9030T/1	185	0.41	2300	2700	3000	3200	3600
MW84-10535T/1	330	0.9	2650	3150	3350	3550	4050
MW84-14035T/1	430	1.2	3000	3500	3700	3900	4400
MW84-17535T/1	510	1.5	3350	3850	4050	4250	4750
MW84-21035T/1	600	1.8	3850	4200	4400	4600	5100
MW84-24535T/1	720	2.5	4200	4550	4750	4950	5450
MW84-12040L/1	550	3.0	4550	3500	3700	4000	4500
MW84-16040L/1	690	3.2	3400	3900	4100	4400	4900
MW84-20040L/1	840	5.0	3800	4300	4500	4800	5300
MW84-24040LL/1	90	6.0	4200	4700	4900	5200	5700
MW84-13042L/2	650	2.4	3060	3560	3760	4060	4560
MW84-17042L/2	850	3.7	3480	3980	4180	4480	4980
MW84-21042L/2	1050	4.0	3900	4400	4600	4900	5400
MW84-25042L/2	1250	4.8	4320	4820	5020	5320	5820

Complete set of Equipment:
· Lifting magnet
· Spring type cable reel with cable
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type)
· Cable connector / Quick coupling
Lifting Magnet Series:
--application for transporating steel scraps, steel plates, billets,etc.
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.

---
