Self-Shearing Fork Type Aerial Work Platform Mobile Scissor Lift Scissor Lift with Drive System

Product Description

Product Description

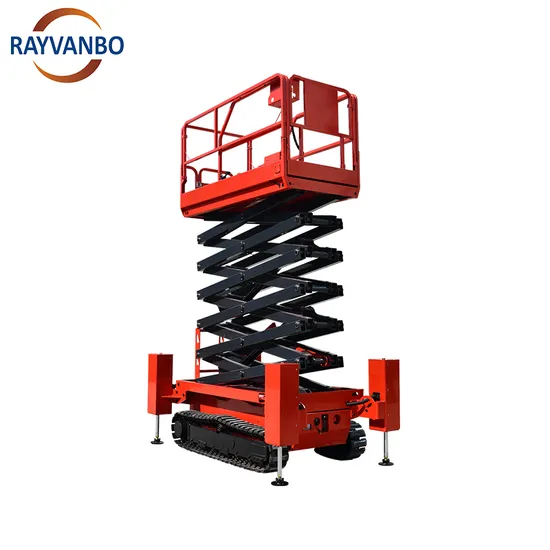

The self-propelled scissor-type aerial work platform is also called a self-propelled lift, self-propelled lift truck, self-propelled climbing vehicle, self-propelled lifting platform, etc. It is a rechargeable lifting equipment. The staff stands on the work surface and operates the handle controller to move forward and backward, turn, lift, etc., without human assistance, saving manpower and greatly improving work efficiency. Multiple safety protection devices can sound alarms and stop working in the event of overload, uneven site, tilted body, insufficient power, etc., which is safer. Its scissor-type mechanical structure makes the lifting platform have higher stability, a wide working platform and a higher carrying capacity, which makes the aerial work range larger and suitable for multiple people to work at the same time. It makes aerial work more efficient and safer.
Product Details
Product features
1. The pedal extension platform can be quickly deployed to the work point;
2. The foldable fence reduces the size of the whole machine;
3. The industry's smallest turning radius (inner wheel 0m) and compact design facilitate operation in a small space;
4. 25% climbing ability, able to climb the slope smoothly;
5. The rotating chassis is easy to maintain;
6. The fault code is automatically displayed for easy maintenance.

Product Parameters

Lifting height	Working platform size (m)	Loading weight (Kg)	Overall dimensions (m) Guardrail folded	Overall dimensions (m) Guardrail not folded	Machine weight (Kg)
4m(Min) electric drive	1.29*0.70	230	1.46*0.76*1.61	1.46*0.76*1.993	900
4.5m electric drive	1.34*0.75	230	1.51*0.80*1.45	1.51*0.80*2.06	1050
6m(Min)	1.68*0.74	230	1.85*0.79*1.67	1.85*0.79*2.20	1430
6m	2.27*1.12	450	2.43*1.21*1.67	2.43*1.21*2.22	2250
8M	2.27*1.12	450	2.43*1.21*1.8	2.43*1.21*2.35	2350
8M(Narrow)	2.27*0.86	320	2.43*0.89*1.9	2..43*0.89*2.35	2260
10M	2.27*1.12	320	2.43*1.21*1.93	2.43*1.21*2.47	2550
12M	2.27*1.12	320	2.43*1.21*2.06	2.43*1.21*2.6	3000
14M	2.7*1.11	230	2.85*1.31*2.06	2.85*1.31*2.6	3670

Optional Configuration

Production Process
Case Show
Packaging & Shipping

About us
Our Factory
Exihibition Show
Certificates

---
