Product Details
Product Description
Product Description
Drive system with high precision linear guide and slide block, high precision ,wearresistance, small resistance, high speed;arc-gear synchronous belt 3m,stabletransmission, strong shock absorption ability and small noise.
Red cross accurate position, convenient and quick in finding engraving and cutting position.
Equipment with automatic / manual modulation focused laser head, responsive andaccurate to ensure sculpture quality.
Electronic lifting

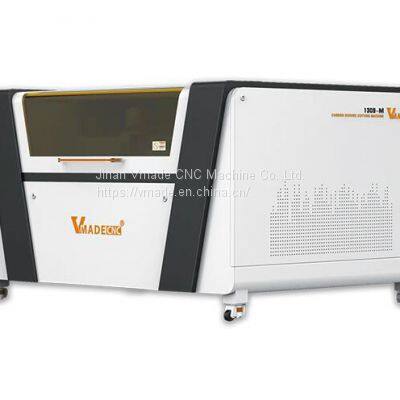

The N Series CO2 Laser Cutting Machine can automatically adjust the working table to satisfy the demands of cutting different thicknesses materials. The lifting height can reach 20cm.
Automatic Focusing
Auto focusing makes the laser head focus easily and quickly. Do not need to adjust the focal length by hand, saving much time and has higher accuracy.
Taiwan Hiwin Linear Guide Rail
Adopted Taiwan Hiwin linear guide rail, high positioning accuracy, scroll guide, reduce wear to maintain accuracy for a longer time.
Japan OMRON
Electronic Component
RECI Laser Tube
Higher laser output power density, concentrated light beam, uniformly light spot, high working efficiency, high cutting speed. The laser tube adopts the special manufacturing technique, the laser beam is sharpen after focusing, the mark line is narrow, the scale is deep, the resolution is high, the picture character is clear.
Technical Parameters
Laser - Type
| Sealed CO2 laser tube
|
Laser power
| 80W 100W 130W 150W 200W (optional)
|
Cutting Area
| 1300mm x 900mm
|
Whole Machine Size
| 1820* 1310* 1070mm
|
Cutting Speed
| 0 - 24,000mm/min
|
Resetting Positioning Accuracy
| ±0.05mm
|
Working Voltage
| AC 110 -220V±10%, 50-60Hz
|
Gross Power
| <1,500W
|
Operating Temperature
| 0-45℃
|
Operating Humidity
| 5-95%
|
Minimum Shaping Character
| English 1x1mm
|
Work Table
| 18cm lift platform
|
Driving System
| stepper
|
Cooling Mode
| water-cooling and protection system
|
Auxiliary Equipments
| Exhaust-fans, air-exhaust pipe
|
Controlling Software
| DSP control system
|
Compatible Software
| CorelDraw AutoCAD Photoshop
|
Application Industry
Wood, organic glass, plastic, garments, paper, leather, rubber, and other nonmetal materials.
Buy co2 laser cutting machine from China with low price and high quality. At Vmade you can learn more about co2 laser cutter manufacturers, supplier and market. Welcome to contact us!
>>
