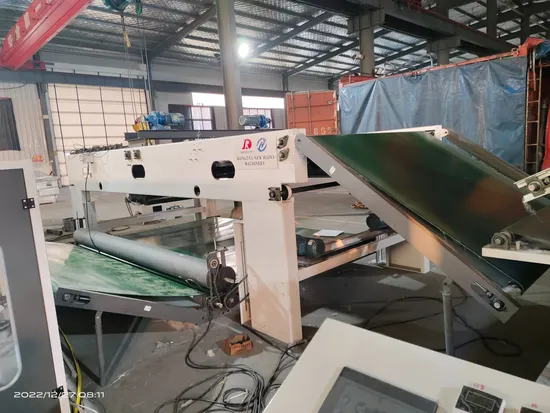

| NO | ITEM | DESCRIPTION |
| 1 | Model | GM |
| 2 | Layer | Fold the fiber layer that from carding machine to reach the thickness of desired and send to needle punching machine |
| 3 | Dimension of M/C | commission |
| 4 | Net width | The net width in: commission ;The net width out: commission |
| 5 | Net making speed | 45 m/min or less; The net speed: 1 ~ 12 m/min |
| 7 | Quantitative lose network | 100 ~ 1000 g / m2 |
| 8 | Control precision | Control precision, CV value of 5% or less |
| 9 | Power | 7.5kw |
| 10 | Frame | Frame body 8 mm thick quality carbon steel folded plate structure and a mix of profile stays |
| 11 | Speed adjustment | Adjusted the speed by inverters |
| 12 | Feeding highly | Feeding highly can do adjusted by hand |
