US$30,000.00-400,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Material Processed
Plastic Bottle
Computerized
Computerized
Certification
ISO9001:2008, CE
Electrical Appliance
Siemens
Working Experience
15+ Years
Exporting Countries
Worldwide
Advantages
Less Energy Consumption, Smart Control
Final Products Water Content
Less Than 2%
Supply Voltage
3*380V+N+PE; Customized
Frequency
50Hz; Customized
Transport Package
Standard Export Package
Specification
500kghr, 1000kghr, 2000kghr, 3000kghr
Production Capacity
100 Sets/Year
Product Description
Product Description

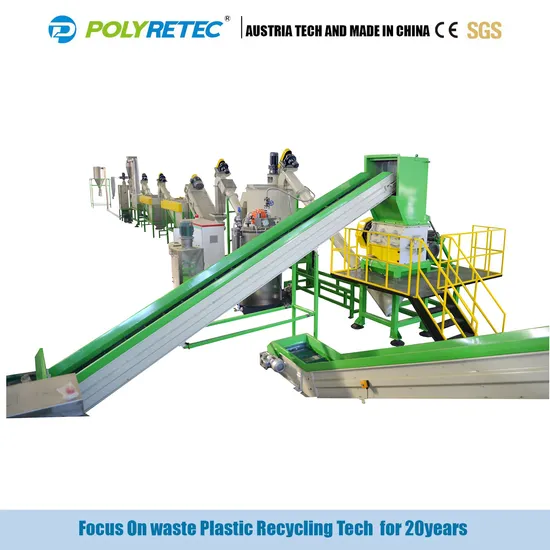

Waste PET beverage bottle, Coke bottle, mineral water bottle crushing washing recycling machine line is used for grinding, washing, separating bottle caps and labels, depriving impurities and glue, drying bottle flakes. Then, these waste PET bottles will become PET materials for reuse.
01 - Features
We have several different standards of PET bottle crushing washing machine line according to different production capacity and cleaning requirements. The PET bottle crushing washing recycling machine line has a capacity of 300-5000kg/h.
Waste PET beverage bottle, Coke bottle, mineral water bottle crushing washing recycling machine line is used for grinding, washing, separating bottle caps and labels, depriving impurities and glue, drying bottle flakes. Then, these waste PET bottles will become PET materials for reuse.
02 - Process flow
Detailed Photos
03 - Photos
Product Parameters
04 - Project parameters
| Model | Capacity | Installation power | Space | steam | compressed
air | Water |
| PET500 | 500kg/h | 150kw | 700m2 | 2000kcal | 0.5m3 | 2m3 |
| PET1000 | 1000kg/h | 220kw | 1500m2 | 4000kcal | 0.5m3 | 2m3 |
| PET2000 | 2000kg/h | 260kw | 2000m2 | 6000kcal | 0.5m3 | 3m3 |
05 - Unit consumption
| No | Name | Consumption/ton | No | Name | Consumption/ton |
| 1. | electricity | 70-90kw | 3. | Clean agent
(option) | 4-8kg |
| 2. | Steam | 250-400kg | 4. | Water | 1-1.5T |
06 - Product quality reference table
| No | name | AA(ppm) | A(ppm) |
| 01 | PVC content | ≤25 | ≤100 |
| 02 | PE/PP/color/metal/others | ≤75 | ≤100 |
| 03 | Total impurities | ≤100 | ≤200 |
After Sales Service
Certifications
>>
