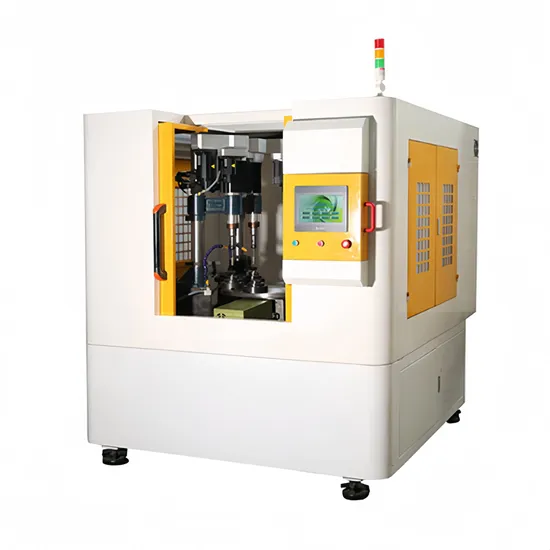

Hc56-30 Customizable Vertical CNC Honing Machine for Cylinder Grinding From China Max. Dia: 30mm

Product Description

Product Description
Processing Diagram
Product Features
CNC honing machine Features

1. Hinge honing is a single stroke superhard material honing hole processing technology developed on the basis of traditional honing, utilizing the characteristics of fixed size machining of hinge holes. It can achieve diversified surface textures of the processed holes.
2. Compared with honing, hinge honing technology can effectively reduce the error of expansion and contraction honing, and improve the roundness, accuracy, surface roughness and other data of workpiece processing, achieving high efficiency, high speed, and high precision processing.
3. Currently, according to demand, hinge honing machines are more commonly used for high-precision inner hole machining of guide sleeves, hydraulic valve sleeves, automotive forks, step hole valve sleeves, and other workpieces. Precision hole hinge honing has significant advantages for some difficult to machine parts.


Product Parameters

CNC honing machine HC56-30 main technical parameters
Machining accuracy	Roundness	≤1um
	Cylindricity	≤2um/100mm
	Roughness	≤Ra0.1um
Structure	Axis	5
	Work station	6
Spindle	Work inner diameter	Φ3-Φ30mm
	Speed	50-3000rpm
Stroke	Max. speed	25m/min
	Max. length	200
Feed	Min. value	0.1um
Others	Weight	2500kg
	Size	1905*2200*2050mm
	Total power	20kw
