Bamboo Wood Crusher Hammer Mill in Israel

Product Description

biomass tree branches log wood chipping machine wood crusher crushing machine
When you send inquiry to ask mobile crusher for wood ,
please tell:
1 What is your raw material and its size?
2 What is the final output size you want?
3 What is the capacity you want per hour?
4 What is the voltage in your place?

CHIPPING&CRUSHING
In the whole charcoal making plant( wood pellet plant,) before raw materials are made into wood briquettebar
(biomass pellets), they need to be cut into much smaller but uniform particles. When the thickness is larger than
10mm or the size is over 50 * 50mm, wood chipper is needed to chip these materials into smaller pieces. Then
hammer mill will crush these small pieces into wood powder with diameter less than 3mm. Wood Chipping Machine

DISC TYPE WOOD CHIPPER
Spiral chipper disc surface may be less than 400mm diameter cutting logs, wood and branches path material,
applied to paper pulp factory, forest games, paper mills, wood chips and other plants. Mainly by the chipper
host, couplings, chassis, motor, such as four-part composition, in which the host by the chipper knives plate,
upper and lower casing, a material feed port and the mouth parts, etc.
main technical parameters

Model	Capacity	Power	Weight	Main shaft speed	Blade qty	Blade diameter	Feeding inlet size
CDRW400	0.8-1t/h	7.5-11kw	160kg	650 r/min	3 pcs	400mm	150*150mm
CDRW600	1.5-2t/h	15kw	380kg	600 r/min	3 pcs	600mm	180*150mm
CDRW800	3-6t/h	22-30kw	520kg	550 r/min	4 pcs	800mm	200*200mm
CDRW950	5-8t/h	30-37kw	950kg	550 r/min	4 pcs	900mm	230*250mm
CDRW1150	8-10t/h	55-75kw	2000kg	500 r/min	4 pcs	1100mm	330*300mm
CDRW1410	15-16t/h	110kw	2600kg	500 r/min	4 pcs	1400mm	400*400mm
CDRW1500	15-25t/h	132kw	3500kg	500 r/min	4 pcs	1500mm	480*450mm

Crushing machineFor drying and briquetting process of biomass materials, crushing plant is available. We mainly manufacture two
types of crushing plants for various agro-forestry wastes, which are wood crusher and hammer mill. You should

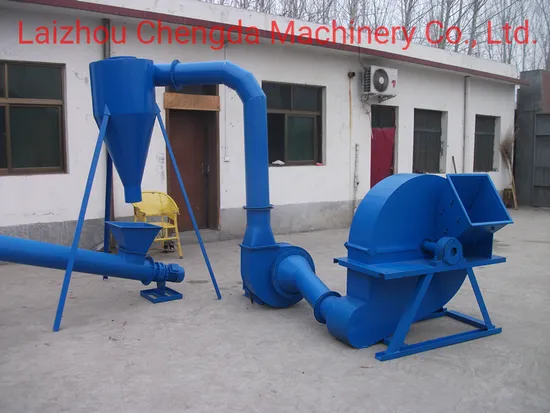

choose the more workable one according to your raw materials.DISC TYPE WOOD CRUSHER Wood crusher is the special chipping/crushing equipment for raw wood of 50-250mm( diameter).During the
working process, the raw wood will be chipped, re-crushed and sieved, the wood crusher combines both
chipping and crushing in one machine to get the wood sawdust directly. The diameter of wood sawdust can
reach to 2-5mm, which is suitable for further drying and briquetting, no need to use other wood chippers,
wood crusher shows the advantage of precise structure, high capacity, energy consumption, high-quality
finished products, easy maintained, etc

Model	Capacity (kg/h)	Power	Package size(m)	Weight
CDW40	300-400	11kw	1.3x0.9x1.0	350kg
CDW50	400-500	15kw	1.5x1.05x1.3	450kg
CDW60	500-600kg/h	18.5kw	1.5x1.1x1.4	550kg
CDW70	800-1000kg/h	22kw	1.6*1.25*1.5	650kg

HAMMER MILL Hammer mill is to crush small sized material with diameter no more than 50mm, such like tree branches, tree
trimmings, wood chips, wood cuttings, cotton stalk, corn stalk, wheat straw etc. Blate type wood crusher is to
crush wood logs with diameter less than 200mm to 3-5mm at any length.

MODEL	POWER	OUTPUT(KG/H)	N.W/G.W(kg)	PACKING SIZE(cm)
CF158	2.2kw SINGLE/3 PHASE	60-120	75/95	48*58*63
CF198	7.5HP GASOLINE	200-300	120/140	90*58*102
CF198	4KW		120/140	90*58*102
CF420B	7.5KW	400-600	260/320	112*82*107
CF420C	11KW		320/360	112*82*107
CF420A	15HP DIESE		330/360	147*73*109
CF420A	22HP DIESE		350/390	147*74*111
CF500A	55HP DIESE	800-1100	800/840	150*142*123
CF500B	22KW		600/630	124*97*106

If you need more information feel free to contact with me by the following method:

---
