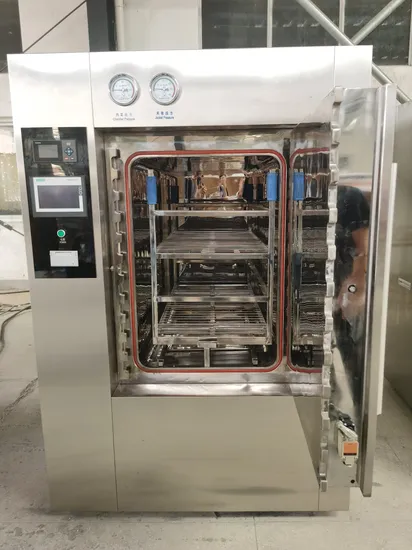

Double Door 600L 800L 1000L 1200L 1500L Super Large Horizontal Pulse Vacuum Steam Sterilizer

Product Description

600L 800L 1000L 1200L 1500L Super Large Horizontal Steam Sterilizer
Features: ☆ Horizontal square inner chamber + jacket structure, safety, heat preservation, and drying function; ☆ Disc type embedded gear + Electric lock door structure,safety and reliable; ☆ The door seal is pneumatic, single or double door (double door interlock); ☆ Equipped with standard equipment verification interface; ☆ Pipeline system for the optimal design, SUS304 pipeline,clamp structure, quick assembly; ☆ Control system: HMI man-machine interface,touch screen+PLC ☆ F0 value and temperature time double guarantee sterilization effect, with perfect sterilization records; ☆ With program selection, parameter setting, equipment operation, report processing and traceability Functions; ☆ Three levels of authority management ☆ Multiple safety protection (over-temperature, over-pressure protect) ☆ Sterilization process: fabric, equipment, liquid, BD, pressure testing, custom defined multiple procedures
1.STERILIZATION CONTROL PRINCIPLES Pulsating vacuum sterilizer is strictly designed and manufactured in accord with GMP technical Standard. It has passed ISO9001 quality management qualification standard and ISO13485:2003 Certificate of Quality Management System for Medical Devices. The relevant data can be saved and printed automatically. This autoclave is suitable for hospital, scientific research institute and other units to sterilize asepsis clothes, tools, ulture medium and so on. 1.1 Main body (Pic. 1) The chamber is cylinder and made of SS304, is checked by X-Ray. Its design pressure is 0.3Mpa 1.2 Door structure(Pic. 2) The autoclave is single Electric door type. The door seal is the inflatable type, pressurized with compressed air, and can withstand the chamber temperature and pressure. Sterilization cycle can start only after the door is fully closed and locked. Supply with instrument-grade compressed air: thanks to the special cross-section, the compression fluid cannot escape toward the sterilization chamber, compromising the sterility of the chamber and of its contents. Simple maintenance: no periodic lubrication or maintenance is required, except for ordinary cleaning of the surfaces and removal of any foreign objects that might be squashed between the gasket and the door;
Safety: electromechanical and electronic safety interlocks managed by the process. controller prevent the opening of the door if the gasket is still pressurized and/or if there are conditions entailing danger for the operator and/or the load. 1.3 Pipe system (Pic. 3) Pipeline system is consisted of Integrated electric steam generator,air filter,steam trap and pressure controller,etc. All process piping in contact with the chamber is fabricated from SUS 304L with argon welding. 1.4 Control system (Pic. 4&5) The control system incorporated with: PLC + HMI(Touch screen)+Printer +Paperless data logger. The master controller system: can set the user name and password, also can set up different user access. A manager, users, maintainers triple interface function. Managers can be used according to different level, set on use of a password, ensure use safety, prevent that due to improper operation or modify the program brings experiment. Touch screen: display work process parameters, control is simple, the operation is convenient.
Technical parameters

Model	Overall Dimensions (L×W×H)mm	Chamber Size (L×W×H)mm	Steam Consumpti on(KG)	Water Consumpt ion(KG)	Power (KW)	Net Weight Single/Double Door(KG)
YJ-150D(S)(M)	950× 1120× 1760	700×450×480	≤14	≤190	≤2+18	700/750
YJ-200D(S)(M)	1175× 1120× 1760	925×450×480	≤16	≤190	≤2+18	830/880
YJ-250D(S)(M)	1030× 1300× 1900	780×600×600	≤18	≤200	≤2+24	980/1050
YJ-360D(S)(M)	1250× 1300× 1900	1000×600×600	≤25	≤200	≤2+24	1080/1150
YJ-600D(S)(M)	1440× 1310× 1900	1190×610×910	≤30	≤210	≤3+36	1150/1250
YJ-800D(S)(M)	1700× 1310× 1900	1450×610×910	≤35	≤220	≤3.5+45	1200/1300
YJ-1000D(S)(M)	1500× 1440× 1950	1250×680× 1180	≤42	≤200	≤3.5	1380/1500
YJ-1200D(S)(M)	1700× 1440× 1950	1450×680× 1180	≤50	≤200	≤4.5	1530/1650
YJ-1500D(S)(M)	2100× 1440× 1950	1850×680× 1180	≤60	≤200	≤4.5	1680/1800

Note: 1. For example≤2+18, the first 2 is the power of the system, and the 18 is the power of the built-in steam generator.But the steam generator is optional. 2. Model YJ-150D(S)(M)~YJ-360D(S)(M) is equipped with sterlization basket, and the YJ-600D(S)(M)~YJ-1500D(S)(M) is equipped with sterilization car and loading car; 3. Model "D"means single door,"S"means double,"M" means pulsation vacuum.

---
