X (S) N-35 High Quality and Multi Functional Rubber Kneader Making Machine

Product Description

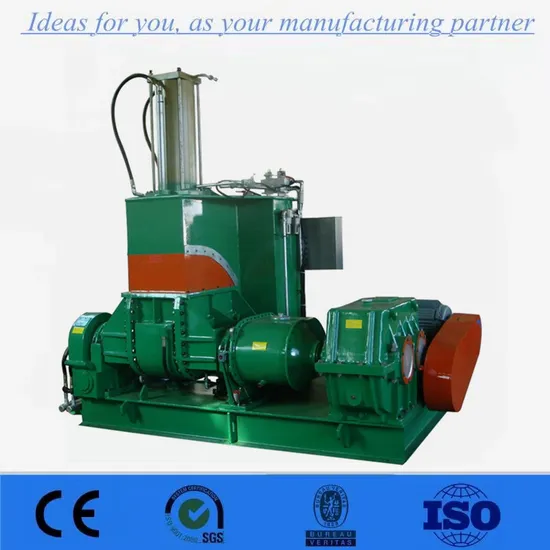

X(S)N-35 high quality and multi functional rubber kneader making machine
Rubber Kneader Product Description
Rubber Kneader Mixing Chamber It consists of a "w" shape body and two side boards made of high quality steel plates by means of extrusion forming and welding, which are jacked to take the flow of cooling water or steam. It is plated with hard chrome on its internal walls
Rubber Kneader Regular Note Pump Timing injection pump to the sealing system on a regular injection of hydraulic oil, lubrication sealing effect.
Rubber Kneader Thermal Resistance (or thermal couple) There is a plug-in thermal resistance or thermal couple in middle section of the bottom of the chamber to be connected to electrical system to inspect and control the mixing temperature.
Rubber Kneader Rotor It is designed to the hollow blades of banbury type. The hollows are connected with axial hole of rotor shaft used as cooling or heating passage. The top edges and the side faces of blades are surface welded with hard alloy and ground, then plated with hard chrome and polished.

Rubber Kneader Cooling/heating System A common piping system is adopted for either cooling or heating material in mixing operation. Through the system cooling water or steam is fed in three ways to the cavities of the rotors blades, - the jackets of the mixing chamber and the top ram.
Rubber Kneader Tilting Mechanism It consists of a rotor with brake, cycloidal gear reducer, TP type worm and worm gear, etc. It is able to actuate the mixing chamber tilting by 140° Around the front rotors.
Rubber Kneader Electrical Control System Imported PLC device and electric control components which are all imported products or imported technology products are adopted in the electric control system as to raise control reliability.
Rubber Kneader Dust Sealing Device Mixing chamber catchy interface rack cantilever the oil dust seals and timing effect oiling dust, unique structure, the use of copper materials, good sealing performance, no leakage of the glue, powder leakage, do not pollute the environment, but also has easy maintenance and long service life.
Rubber Kneader Specification

Item

Unit

X(S)N-3x32

X(S)N-5x32

X(S)N-10x32

X(S)N-20x32

X(S)N-25x32

X(S)N-35x30

X(S)N-55x30

X(S)N-75x30

X(S)N-110x30

X(S)N-150x30

X(S)N-200x30

Total Volume of Mixing Chamber

(L)

8

15

25

45

55

75

125

170

250

325

440

Working Volume of Mixing Chamber

(L)

3

5

20

25

35

55

75

110

150

200

Driving Motor Power

(KW)

5.5

11

22

37

37

55

75

110

185

220

280

Titling Motor Power

(KW)

0.55

1.1

1.1

1.5

1.5

2.2

2.2

4

5.5

11

11

Rotational Speed of The Rotor (front/rear)

(r/min)

30/24.5

32/23.5

32/25

32/27

32/27

30/24.5

30/24.5

30/24.5

30/24.5

30/24.5

30/24.5

Pressure of Compressed Air

(m³/min)

≥0.3

≥0.5

≥0.5

≥0.7

≥0.7

≥0.9

≥1.0

≥1.0

≥1.5

≥2.0

≥4.0

Pressure of Cooling Water (mixing rubber)

(MPa)

0.2~0.4

0.2~0.4

0.2~0.4

0.2~0.4

0.2~0.4

0.3~0.4

0.3~0.4

0.3~0.4

0.3~0.4

0.3~0.4

0.3~0.4

Pressure of Heating Steam (plastic mixing)

(MPa)

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

0.5~0.8

Dimensions (LxWxH)

(mm)

2000 x1000 x2220

1850 x1200 x2580

2640 x1650 x2350

2675 x1650 x2560

2675 x1650 x2560

3200 x1900 x2950

3230 x1927 x2958

3325 x2615 x3150

4075 x2712 x3580

4250 x2750 x4106

4250 x3400 x4215

Gross Weight

(t)

~2

~2.1

~3.3

~4

~4.5

~6.3

~7.1

~9.5

~14.9

~19.5

~22.5

Rubber Kneader Packing and Shipping
Equipment painting completed before delivery, and then wrapped with stretch film, avoid rubbing the paint off the surface, wooden packaging can be customized, key parts, such as electronic control box, will be wrapped by shockproof packaging materials, and then packed in wooden cases.
Our Service
♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.
♦ In the process of production, we will take photos and send to customers for their track the progress.
♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.
♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.
♦ We supply overseas engineer service and help to train your workers to operate the machine.

---
