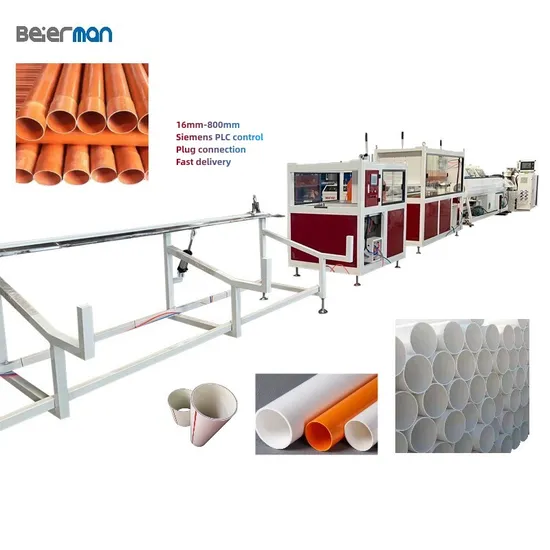

Beierman Price Plastic PVC Pipe 0.5 Inch to 15 Inch Water Pipe Conical Double Screw Extruder Machine Tube Making Machinery/Equipment/Extrusion Production Line

Product Description

PVC pipe extruder, pvc pipe machine, pvc pipe extrusion machine, pvc pipe line, pvc pipe making machine, plastic pipe making machine, pipe machine, upvc pipe machine, upvc pipe production line, pvc pipe production line, pipe extruder, machine, line, equipment, extruder
Product Description
PVC pipe production line is mainly used in the area of agriculture water supply system, architectural water supply system, pavement of cables, ect, as well as PVC pipe material of all sorts of pipe caliber and wall thickness, this machine group consists mainly of twin concial screws extruder, vacuum calibrating tank, haul off unit, cutting unit, tilter, ect, single screw extruder and haul off unit have applied impoded AC inverter, both vacuum pump and driving motor have applied excellent products, the drawing machine included two-claw type, four claw type, six-claw type, ect, and following planetary cutting machine, it has reached world advanced level.
main extruder: SJSZ45/90, 51/105, 65/132, 80/156, 92/188, 130/26
pipe diameter can be 16-63mm, 32-110mm, 63-200mm, 63-110mm, 110-250mm, 200-400mm, 200-400mm, 315-630mm, 500-800mm.
motor power can be : 47KW, 60kW, 70Kw, 91KW, 85KW., 86.5KW., 136KW. 114KW, 131KW, 212KW, 220KW, 233KW.
pipe moulds features:
1. alloy steel moulds body
2. mirror polishing and chrome plate
3. sprial channel design
4. electric heating
Production line data:

NO.	Main parts	Detail information
1	DTC-600 Screw conveyor	Driving motor:2.2KW
2	SRL-Z300/600 PVC powder mixing unit	Driving motor:40/55/11KW, Capacity: 350KG/hour
3	DTC-300/600 Screw conveyor	Driving motor:1.5KW or 2.2KW
4	SJSZ80/156 SJSZ65/132 Conical twin screw extruder (Vertical type, Horizontal type,is optional)	Driving motor: 37KW or 55KW, Capacity: 200-400KG/hour
5	16MM-400MM PVC pipe moulds	pipe size: 16MM,20MM,25MM, 32MM,40MM,50MM,63MM,75MM,90MM,110MM,125mm, 160mm, 180mm, 200mm, 225mm, 250mm,280mm,315mm,400MM
6	Vacuum forming tank	Tank length: 6000mm; vacuum pump: 5.5KW*2pcs, Water pump: 5.5KW*2pcs, stainless steel tank
7	Hauling off machine	Hauling off motor: 5.5KW, 2/4pcs caterpillars
8	Cutting machine	Cutting motor:4KW, planetary cutter.
9	PVC pipe belling machine	U style,or Rstyle,socketing for PVC pipe,35KW
10	PVC pipe stacker	or use stacker to instead of belling machine

Note: Our production lines all adopt plug connection, largely save buyer's time to do complex wire connection work.
Main electrical elements adopt ABB/DELTA frequency inverter, Siemens motor, Omron temperature control, domestic famous brand screw and gearbox, ect.

Detailed Photos
Product Parameters

Extruder	51/105	55/120	65/132			80/156		92/188
Pipe Diameter	16-40	50-110	16-32	50-160	50-200	110-250	250-400	315-630
Die Head	Double outlet	Single Outlet	Four Outlet	Single Outlet	Single Outlet	Single Outlet	Single Outlet	Single Outlet
Auxiliary Machine	GF40	GF110	GF32	GF160	GF200	GF250	GF400	GF630
Total Power(KW)	60	70	91	85	86.5	136	156	233

Packaging & Shipping
Company Profile
Zhangjiagang Beierman Machinery CO.,LTD.is a modern factory, which engaged in the plastic extrusion machine and recycling machines' researching, manufacturing and saling. Our professional research teams, sales teams, rich experience and processing equipment will offer customers high quality machines and perfect after sales services.
Our major products including: single screw extruder, twin screw extruder, HDPE pipe production line, PP-R pipe production line, PVC pipe production line, plastic profile production line, plastic sheet production line, plastic mixing machine, and relative auxiliary machines for the plastic machines. We will offer the customers the whole set of solution from extrusion to recycling and turn key projects. Our machines are highly praised by our customers for perfect perfomance, quick service, advantage technology.
Customer's satisfied is our target forever. We will offer detail solutions according to different customers detail conditions. Customers' expected products, services is what we are always insisting. High quality, Quick services, mutually beneficial will our promise to customers around the world
