Chinese Agricultural Machinery New Whole Rod Diesel Driven Sugarcane Combine Harvester

Product Description

Chinese agricultural machinery new whole rod diesel driven sugarcane combine harvester
Product Description

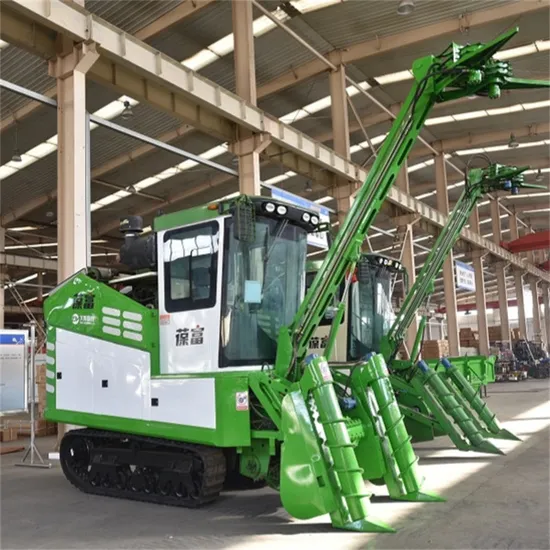

4GL-1(G4) sugarcane harvesting machine is a kind of whole-bar self-propelled sugarcane combine harvester, which is developed with self-dependent innovation and scientific and rigorous optimization design. And it also is a kind of new full hydraulic drive whole-bar sugarcane combine harvester with high house power based on domestic and oversea advanced technology by repetition test. At present, our company has got the local high-tech progress award, a number of patents for invention and utility model patents. The company has passed the test evaluation and reliability test by the national authority and obtained the appraisal certificate for agricultural machinery promotion, and we also enter in the list of state subsidies of agricultural machinery
Equipment Feature
1,Crawler-type stepped mechanism, adjust to many kinds of terrain, work smoothly
2,EURO 3 emission standards of EFI diesel engine, high fuel efficiency, energy conservation and environmental protection, high reliability
3,International advanced design language, Stable and efficient electronic control unit, abundant instrument display, humanized control mode, which can ensure comfortable and convenient operation
4,Full hydraulic drive, high transmission efficiency, stable power output, long service life with overload protection.
5,The whole-bar type harvesting method adapts the national condition, reduces the sugar loss greatly. And the transportation is convenient
6,Integration for tail cutting, root cutting, leaf stripping, which can save labor, and keep a high efficiency
7,Multistage flexible working unit, low impurity rate, low breakage rate
Product Parameters

Model	4GL-1(G4)	Adaptive row spacing	0.8~1.2m
Adaptive line number	Single row	Running speed	Highest 9Km/h
Net weight of machine	5.5ton	Engine power	95Kw
Maximum grade ability	25%	Track centers	1.2m
Self-propelled drive mode	Hydraulic motor + Mechanical transmission	Boundary dimension	7100*1850*4100mm

Detailed Photos
Company Profile
Qingzhou Yunqi Machinery Sales Co., Ltd. is located in the Economic development zone of Qingzhou City, Shandong Province, with superior geographical location and convenient transportation. It has two branches, Qingzhou Dayou Agricultural Equipment Technology Co., Ltd. And Qingzhou Shunye Machinery Technology Co., Ltd., mainly engaged in sugarcane harvester and construction machinery gearbox.
Dayou Agricultural Equipment Technology Co., Ltd. Has a complete set of large-scale factory 10000 square meters, office area 1500 square meters. At present, the company has seven departments including manufacturing department, technology department, research and development center, purchasing department, Marketing Department (including international market management department), after-sales service department, and comprehensive department, and has the independent management ability and channels of machinery import and export foreign trade. The company has two full-time technical consultants, and has maintained long-term cooperation with several major national research institutes and professional colleges. The company has strong technical force, 3 senior engineers, 12 R & D, design and process engineers, and rich work experience. Excellent sales and after-sales team is the main guarantee for customer service. Qingzhou Dayou is fully capable of providing comprehensive solutions for our customers to relieve all the worries of customers.
The company has a strong production and processing capacity, the existing CNC machining center, large CNC lathes, large laser cutting machine, welding
More than 40 high-precision machining equipment such as robots; There are 120 skilled technicians and assembly engineers. The main product, sugarcane harvester, has obtained 6 patents, completed the promotion and identification, and entered the catalogue of agricultural machinery subsidies supported by the state.

---
