Double Headed Pipe Bending Machine Tube Bender for Baby Walker

Product Description

Brief Introduction on Pipe Bending Machine
Double head tube bending machine offers easy access to manual and auto mode. Double Head Tube bending machine applies to both sides of symmetric bending which greatly improve the productivity on mass production. What's more,two pieces or three pieces can be bend together at one time according to different pipe size.Model with 90° means the double head bending machine with rotatory function to do 3D bending.Left and right cabinet ensures machine stability and bending shaft center easily to adjust.
Features on Pipe Bending Machine Automatic hydraulic double head bending. Human Interface offers easy access to auto and manual operating modes. Available pipe material: steel, stainless, aluminum, titanium and brass... Available pipe shape: Round,Square,Rectangle,Oval,Solid Bar,other profiles... Left and right cabinet ensures machine stability and bending shaft center easily to adjust. Double head Pipe bender can be used separately. 2/3/4 pieces of tube bend at one time greatly improved the efficiency of production. Water cooling system ensures the equipment long-time work stably under the high temperature. CE&ISO 9001:2000. Optional Customized distance between two bends Auto loading device PLC controlling Air cooling device Cooling Conditioner Safety mat
Technical Specification

Item	Name		Unit	Technical
01	Max. Bending Capacity:Mild Steel		mm	¢42x2
			mm	¢15x3pieces bend together
			mm	¢25x2pieces bend together
02	Bending Radius Range(For Machine)		mm	42-250
03	Bending Distance Range		mm	170-1450(Can be Customized)
04	Max Bending Angle		°	185
05	Bending Axis	Speed	Deg/sec	60
		Accuracy	mm	±0.1
		Power	KW	5.5 Controlled by Hydraulic
06	Machine Size		mm	2700x900x1800

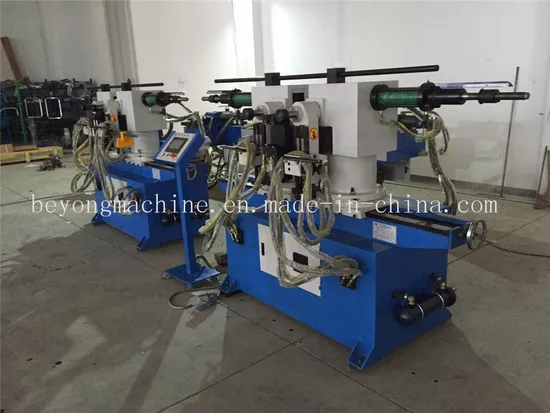

Machine Photos Reference
FAQ:
1. Q: Are you a manufacturer or trading company?
A: Yes, we are a manufacturer.We are focusing on metal pipe/tube processing machines production.
2. Q:Where is the nearest airport to your company?
A: Wuxi Airport or Shanghai Airport.
3. Q: How to choose the pipe/tube bending machines?
A: You have to inform us following details:
- Pipe Outdiameter Range
- Wall thickness range
- Bending Radius Value
- The pipe material
- Bends Number on one pipe
- The drawings if possible
4. Q: What certificate do you have?
A: We have both ISO and CE certificate.
5. Q:How about your service?
A: Before Sales Serive:
1. We will help our customer confirm the right model according to the offered pipe inforamtion.
2. Welcome to visit our factory to see our machine and our workshop before you place an order.

After Sales Service:
1. We provide manual book,detailed machine installation,commissioning video for help you correctly
operate machine.
2. We provide free installation,commissioning and training at our factory.If you need engineer go to
your factory for machine installation, air tickets,food,hotel,local transportation shoule be at your
account.
3. Any problems on machine,we will reply you by email/tel or other online contact within 24 hours.
Packing&Delivery
Company Introduction:
Zhangjiagang BEYONG Machinery Manufacturing Co.,Ltd has been serving on tube processing machinery industries for over 15 years. We are committed to providing our customers with quality products, solutions and services provided on schedule, at competitive prices. Standard of mechanical parts including structure,characters etc... are similar with European's.For out-sourcing parts including Electric,Hydraulic,Mechanical etc...are from well-known companies.
Our Machines with full line of metal pipe processing machines including tube bending machine, circular saw machine, end forming machine, chamfering machine, saw blade sharpener,riveting machine...etc. Further more,we can customized machines with advanced technology,such as multi-function machine with draw bending+push bending+punching,straightening+bending+cutting and so on.
Our machines export to Italy,Germany,Australia,Russia,New Zealand,Canada, Poland,Mexico, Brazil,Chile,Argentina,Saudi Arabia,South Africa, Egypt,England etc.

---
