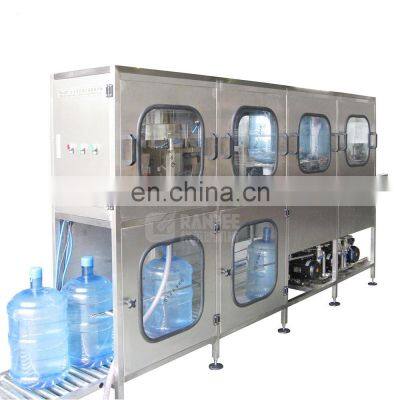

5 Gallon / 20 Liter Water Barrel Bottling Plant / Filling Equipment

Product Description

Product Description
5 Gallon / 20 Litre Water Barrel Bottling Plant / Filling Equipment
Product Description
Functions and features:
1. Using the wind sent access and move wheel in the bottle directly connected technology; canceled screw and conveyor chains, this enable the change the bottle-shaped become easier.
2. Bottles transmission adopt clip bottleneck technology, bottle-shaped transform not need to adjust the equipment level, only change related the curved plate, wheel and nylon parts is enough.
3. The specially designed stainless steel bottle washing machine clip is solid and durable, no touch with the screw location of bottle mouth to avoid secondary pollution.
4. High-speed large gravity flow valve filling valve, filling fast, filling accurate and no liquid lose.
5. Spiraling decline when output bottle, transform bottle shape no need to adjust the height of conveyor chains.
6. Host adopt advanced PLC automatic control technology, the key electrical components from famous company such as Japan's Mitsubishi, France Schneider, OMRON.
Main machine show:
Semi automatic cap pulling out and inside brusher washing machine
Washing part
Filling and capping part
Empty bottle feeding conveyor system
Main technical parameter
ModelQGF-100QGF-200QGF-300QGF-450QGF-600QGF-900QGF-1200
Filling heads12234612
Volume3&5 Gallon
Barrel size Φ270*490mm
Capacity(b/h)60-100100-240250-300400-450600-800800-9001000-1200
Air pressure(MPa)0.4-0.60.4-0.60.4-0.60.4-0.60.60.60.6
Air consumption(m³/min)0.370.370.60.811.51.8
Motor power(kw)1.381.753.83.87.59.7513.5
Rated power(kw)1.381.753.83.87.59.7513.5
Rated voltage380V/ 50HZ
Weight(KG)68080015002100300035004500

Related product
Semi automatic 5 gallon / 20L PET bottle blow molding machine:
Semi automatic Blowing Machine for 90BPH-180BPH from 5 gallon bottle with one cavity, 5L bottle with 2 cavity can be also used in this blowing machine
RO System:
Besides Water filling machine, this RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department.
This RO system we can make to match up with your water
filling machine from capacity from 500L/Hr to 50000L/hr.
We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
Automatic shrink labeling machine for 5 gallon neck label:
Capacity: 50-100bottles/min can be chosen
Label material: PVC PET OPS, etc
Bottle material: PET PE PP Glass
Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm
Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max)
Label thickness: 0.03~0.13mm

Company information
Workshop detail
Our team
Our exhibition
Packaging & Shipping
FAQ
Q1: How to find suitable machine or complete beverage production line?
A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn
•Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements
• Discussion: Specify the items and what are you exactly looking for.
Q2: Are you a trading company or a manufactory?
A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms .
Q3: Do you have technical support after we purchased your machines?
A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems.
Q4: If you buy our machines, can you offer us wear-out spare parts?
A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
