Texile Dyeing Finishing Circular Knitted Woven Fabric Slitting Rope Opening Washing Machine

Product Description

Fabric slitting equipment
Features:
- The slitting line major used for slitting and opening of knitted and woven fabrics, both tubular and open width form fabrics
- Automatic rope detwisting made by stainless steel, mounted on a fixed tubular flatform
- High automation grade with PLC and inverter system
- High efficiency washing tank after slitting basket
- Fully automatic grade slitting basket
- Can be used for long pile towel fulffy washing process
- Single padder or double padder for dewatering or chemical permeation
- Automatic rotary filtering devecie
- Low tension washing effect
- English version operation system
- Complete finishing line, which place before stenter finishing machine
Specification

Model	HSL-2600
Pre squeezer unit	With small J scray device for fabric storage
Max. working width	2400mm
Speed	100m/min
Machine body	Stainless steel 304
Washing tank	Single tank or double washing tank
Automatic filtering device	Rotary filtering
Padder	High efficieny padder
Touch Screen Controller	All production data can be controlled by touch screen controller

Main Flow Chart:
Pre squeezer unit → Rope opener → Slitting device → Centering unit → Tension sensor → Washing tank → Padder → Plaiter

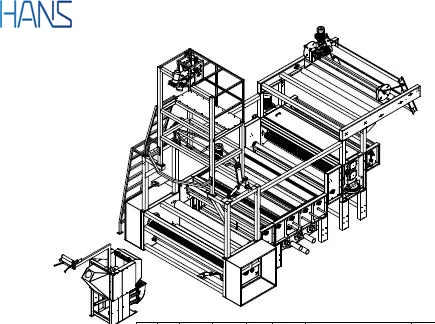

Machine Layout :
Fabric rope opener machine
Features:
- Suitable for open width knit fabric, woven, towel fabrics after dyeing process rope opening and detwisting process
- Long life working condition with stainless steel body
- Fully automatic automation system
- Speed adjustable
- Rotation table option
Specification:

Model	HSL-2600
Max. working width	2400mm
Material of body	Stainless steel 304
Speed	5-80m/min (Adjustable)
Voltage	380V/50HZ
Automation	PLC+ Inverter
Operation panel	English Version

More Information, Please click here!
https://71d09e065b2be768.en.made-in-china.com/product/swJTdZQjMXpc/China-Fabric-Rope-Opener-Detwister-Machine-for-Knit-Fabric.html
Tubular Sewing Machine
Application:
- After tubular slitting process, fabric will be open width form, in order to achieve unique dyeing result, should back sewing the fabric in a tubular form
Features:
- Touch screen controlled, fully automatic tubular sewing
- Equipped with fabric inlet tension adjustor device
- Automatic stop during machine running without fabrics
- Sewing device: Juki
- Edge width adjustable
- Infrared centering device control the centering process of fabrics, make sure fabric running in the center area of the machine
- This tubular sewing machine is equipped with 3 spinder spreader, make sure good fabric edge opening result before the sewing device
- Speed adjustable
Specification:

Model	HTS-2600
Working width	2400mm
Voltage	380V/50HZ
Sewing speed	0-40m/min
Installed power	5KW
Machine weight	1600KG

More Information, Please click here!
https://71d09e065b2be768.en.made-in-china.com/product/NZQAqToggSUx/China-Tube-Sewing-Machine-for-After-Slitted-Fabrics.html

---
