XCMG Official Used Lifting Equipment 16m Mobile Hydraulic Car Lift Xga16 Self Propelled Articulated Boom Lifts for Sale

Product Description

Product Description

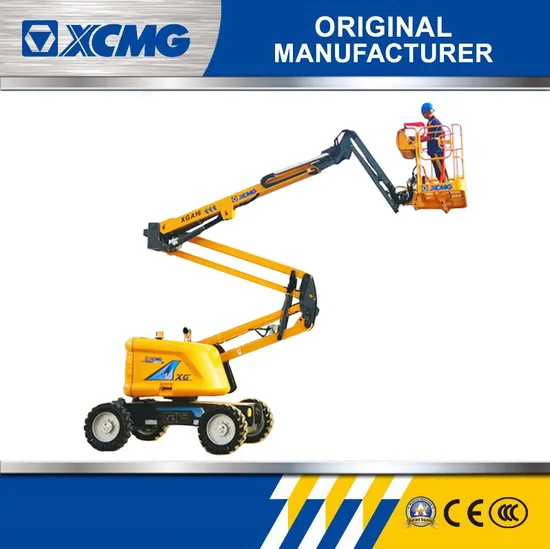

XCMG Official Used Lifting Equipment 16m Mobile Hydraulic Car Lift Xga16 Self Propelled Articulated Boom Lifts for Sale
16M articulated mobile elevating work platform aiming to satisfy customers' requirements. Intelligent and perfect control system features the humanized layout, the maintenance-free design and easy use and maintenance, providing the multiple options and comprehensive safety.
Advantages and highlights:
* Σ-shaped boom, compact and flexible, able to ascend and descend vertically or extend horizontally to cross obstacles; the platform can turn 160°, creating a wider operation area; compact and narrow turntable eliminates tail swing and improves operation efficiency.
* Off-road chassis, 4W drive system, solid off-road wide tire, full-time axle balance system, 38kw power, excellent adaptation to any terrain. Work platform is enable to extend out, enlarging the work space, together with the foldable fence making the transportation easier.
* Full - range work; direct and friendly control panel easy to control; precise and effective electric-hydraulic proportional system Chassis tilting protection, platform overloading warning, emergent lowering, safety speed limit, flexible start/stop technologies.
Product Parameters

Item	Parameter
Parameters of traveling state
Overall dimensions (L × W × H)	6.69×2.26×2.13 m
Working platform overall dimensions	1.83×0.76×1.15 m
Max. speed	6.12 km/h
Max. gradeability	≥30%(2WD) ≥45%(4WD)
Min. external turning radius	≤4.5m
Ground clearance/m (centre)	0.41 m
Wheelbase	2.1 m
Total mass	6900 kg
Main Operation Performance Parameters
Rated working height	16.05m
Max. platform height	14.05m
Max. working range	8.22m
Max. net spanning height	7.14 m
Scope of luffing of No. 1 arm	0°~60°
Scope of luffing of No. 2 arm	-9°~75°
Scope of crank arm luffing	-60°~80°
Scope of platform swing	160°
Slewing angle	355° discontinuous slewing
Slewing radius of turntable	1.145 m
Max. Load capacity	230 kg
Max. Tail swing	0 m
Control system	12V DC proportional control
Emergency control unit	12V DC battery
Tire	33×12-20 off-road solid type (optional: 315/55 D20 off-road foam tire)
Weighing detection	Standard configuration
Axle balance system	Standard configuration
Working speed
Platform lifting/lowering speed	0.1~0.3m/ s
Extending/Retracting speed of Boom No.2	0.1~0.3m/ s
Slewing speed	0.5~1r/min
Engine Parameters
Engine manufacturer	British Perkins / Germany Deutz
Engine model	Perkins 404D-22/ Deutz D2011 L03i
Engine rated power	38KW/3000rpm, 36.3KW/2800rpm

Product Picture

Company Profile
FAQ
1: What kind terms of payment can be accepted?
A: For terms of payment, L/C, T/T, D/A, D/P, Western Union (can be) could accepted.
2: What certificates are available in Machinery?
A: For the certificate, we have CE, ISO, Gost, EPA(USA)CCC.
3: What about the delivery time?
A: 7-30 days after receiving the deposit.
4: What about the warranty time?
A: 12 months after shipment or 2000 working hours, whichever occuts first.
5. What about the Minimum Order Quantity?
A: The MOQ is 1 pcs.

---
