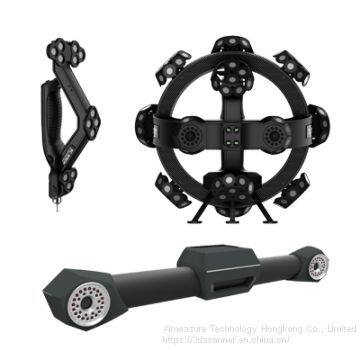

TrackScan-P22 Tracking 3D Scanning System
TrackScan 3D system delivers high-precision 3D solution without markers.
In combination with 3D laser scanning technology (0.020 mm resolution) and flexible probing function (0.030 mm of single point repeatability), it offers rapid and accurate data collection of overall size and key features.
* Features
No Markers Required: The optical tracking technology allows high accuracy 3D scanning solution without markers, delivering an easy-operation, time-effective and labor-saving 3D system.
Portable CMM: For special requirements, such as hole, edge and cylinder inspection, using portable CMM T-Probe enables high-accuracy measurement and 0.030 mm of single point repeatability.
Two Laser Sources in One Scanner: The red laser scan mode performances high flexibility and efficiency, and the blue laser mode easily captures extreme details with 0.020 mm resolution.
Composite Positioning: TrackScan 3D system supports camera tracking and marker tracking modes. In the blind area of E-Track, the scanner can recognize the markers to keep working without tracker.
Dynamic Referencing: Benefitting from dynamic referencing function, TrackScan 3D system can work normally during part's position shifting or E-Track movement.
Extendable Measuring Volume: The measuring volume is dynamically extended by adjusting the positions of the E-Track, meanwhile the accuracy still gets maintained.
Integrated Design: The integrated design makes the TrackScan-P22 sturdy and durable, regardless of environment instability, vibrations and thermal variations.
* Specification
Model
| TrackScan-P22
|
Scan mode
| Standard mode R
| Hyperfine mode B
|
Laser source
| 7 red laser crosses (+1 extra red laser line)
| 7 blue parallel laser lines
|
Accuracy
| 0.030 mm
|
Deep hole scanning
| Support
|
Hyperfine scanning
| Support
|
Measurement rate
| 480,000 measures/s
|
Resolution
| 0.050 mm
| 0.020 mm
|
Volumetric accuracy
| 9.1 m³
| 0.064 mm
|
16.6 m³
| 0.078 mm
|
Volumetric accuracy
(with MSCAN)
| 0.044 mm + 0.025 mm/m
|
Single point repeatability
(T-Probe)
| 0.030 mm
|
Laser class
| CLASSⅡ (eye-safe)
|
Part size range
(recommended)
| 0.2 - 6 m
|
Stand-off distance
| 300 mm
|
Depth of field
| 200 mm
|
Scanning area
| Up to 275 x 250 mm
|
Output formats
| .stl, .ply, .obj, .igs, .stp, .wrl, .xyz, .dae, .fbx, .ma, .asc or customized
|
Operating temperature
| 5 ~ 40°C
|
>>
