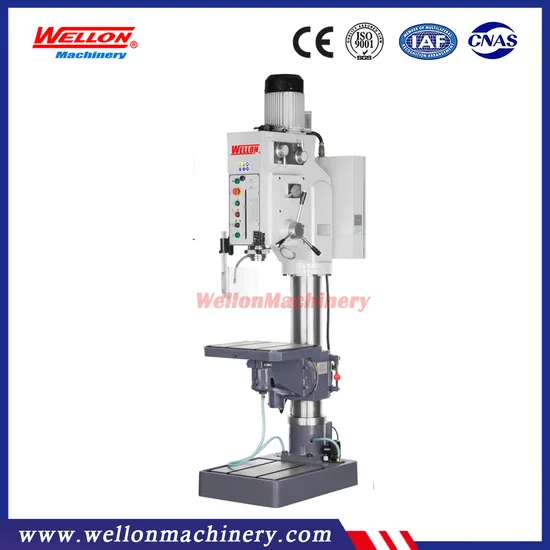

Vertical Drill Press Machine Z5040 Column Drilling Machine

Product Description

Product Description
Detailed Photos
Product Parameters

The machine is designed with multifunction of drilling. Broaching, reaming, tapping and facing milling. With a
strengthened capacity of drilling it allows the workpieces to be drilled with larger range of size. It is suitable for
using in both production and maintenance shops.
1. Easy operation.
2. Casting iron structure for long durability.
3. Column type of vertical drilling machine.
4. Worktable can rotate 180 degree and tilt 45 degree
5.Worktable lifting both manual and motorized.
Technical parameter:

Model	Z5040
Max. drilling capacity(mm)	40
Max. taping capacity(mm)	M27
Distance from spindle to column(mm)	360
Max. distance from spindle to work table(mm)	590
Max. distance from spindle to base(mm)	1180
Max. spindle travel(mm)	180
Max. travel of work table(mm)	550
Swivel angle of table	±45
Tilting angle of table	±180
Spindle bore taper	MT4
Spindle steps	12
Spindle speed(r/min)	42-2050
Spindle feed steps	4
Spindle feed range(mm/r)	0.07,0.15,0.26,0.4
Column diameter	160
Effective area of table(mm)	550x470
Effective area of base(mm)	450x440
Main motor power (kw)	2.2/2.8
Coolant motor power(kw)	0.04
Packing size(cm)	108x62x245
N.W./G.W.(kg)	815/755

Standard accessories:
Coolant system
Work lamp
Drill chuck
Reduction sleeve
Worktable lifting device
Wrenches
Optional accessories:
Machine vise
Spindle guard
Depth indicator
Company information
Packaging & Shipping
FAQ

1: What's your main products of your company?
A : We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining
Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .
2:What kind of controlsdo you use on machines?
A :Siemens,GSK ,Fanuc etc. You can choose according to your requirements .
3. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
4 : How can I choose the most suitable machines ?
A : Please tell me the model or parameter you are interested in, we can provide you with the best price and quality.
You can also send us product pictures and we will choose the most suitable machine for you.
5 : Do we receive any updates while machine is in the manufacturing process?
A : Of course. The progress of the machine will be updated regularly and sent to you.

---
