Stainless Steel Coffee Beans Grains Grinding Machine Corn Grinder

Product Description

Stainless Steel Coffee Beans Grains Grinding Machine Corn Grinder
Main Function:
This machine is widely used in crushing of the pharmaceutical, food, chemical industry materials crushed. FL cooled mill is designed to improve the well-developed from a new generation of grinder machine is mainly used in chemical, dyes, additives, feed my company in the pulverized material accumulated by the insurance and China's actual conditions , smashing processing, fineness food, medicine, wood, fiber and non-metallic ore and other low hardness material adjustment between 20-120 mesh, high yield, fine grain size, low noise, low power consumption, simple maintenance, installation and easy, especially for oily, sticky, heat-sensitive, fibrous: smashing processing (eg ginger, chili, pepper, oil, wheat, soy almonds, anise, cinnamon) and other low-high hardness materials
Features:
Crushing chamber uses wind wheel type high speed rotary cutters, so that the chamber's own air volume is big, not easy to heat chamber machine. It has a smooth running, easy to disassemble and clean, low noise, and good crushing effect and so on.
Working Theory:
The machine uses the wind wheel type high speed rotary cutters and the fixed cutters to crush, cut grinding, chamber will produce a strong airflow in the crushing, the heat and finished in the crushing chamber flows out together through the screen, particle size will be obtained by replacing the screen.

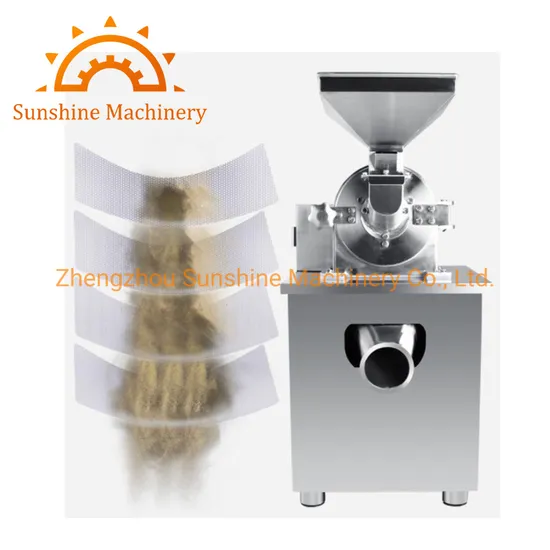

Pictures:
Technical parameters:

Model	20B	30B	40B	60B
Production capacity(kg/h)	60-150	100-300	160-800	500-1500
Spindle speed(r/min)	4500	3800	3400	2800
Feeding granularity(mm)	6	10	12	15
Grinding fineness(mesh)	60-150	60-120	60-120	60-120
Grinding motor power(kw)	4	5.5	11	15
Suction fan power(kw)	1.5	1.5	1.5	2.2
Weight(kg)	250	320	550	680
Dimension(cm)	110*60*165	120*65*165	135*70*170	1550*100*175

---
