Factory Directsale Top Quality CNC Lathe Ck61100b/Ck61120b

Product Description

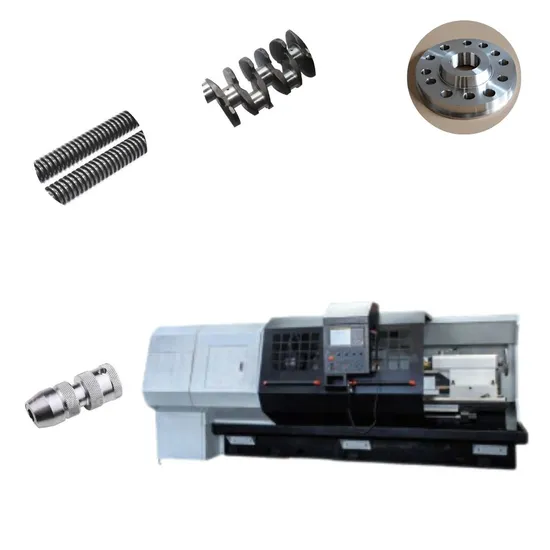

Factory Directsale Top Quality CNC lathe CK61100B/CK61120B
Secificities:
Mateched with FANUC SIGMENS or NC syetem high-reliability because of its STD totaline strnc-tion.CRT showing .line and circle in-terpolation.
2 axle closs-circle cotrol.AC servo motor,Semi-closed loop control syetem.
The lathe bed guide rail width 580mm body lathe bed,ater the guide rail uses high strength cast iron ultrasonic frequencyquenchingprecisely to rub truncates,
Slidewaygluded low-fricton plasticsThe main axle frequency conversion stepless speed regulation,uses three supportingmain axles structure,the steelis good.
Suited for cutting workpieces which have various shapes and sizes.

Parameters :

Model No.
Item No.	CK61100B	CK61120B
Specifications
Max.Swing over bed	1000 mm	1200 mm
Max,swing over cross slide	670 mm	830 mm
Distance between centers	1500 2000 3000 4000 mm
Spindle hole	105 mm	105 mm
Max.distance of moving tool-post
Longitude	1500 2000 3000 4000 mm	1500 2000 3000 4000 mm
Transverse	420 mm	520 mm
Spindle speeds(Number)	6-20,18-70,70-245,225-750 Four-speed Continuously Variable Transmission
Main motor power	11 or 15kw Variable Frequency Motors
Speed of high-speed movement
Longitude	6 m/min	6 m/min
Transverse	4 m/min	4 m/min
Feed resoving factor
Longitude	0.01 mm	0.01 mm

Transverse	0.005 mm	0.005 mm
Toolnumembers on tool-post	4,6,8 selectable	4,6,8 selectable
Positioning accuracy
Longitude	0.04/1000mm	0.04/1000mm
Transverse	0.003mm	0.003mm
Repeatablity
Longitude	0.016/1000mm	0.016/1000mm
Transverse	0.012mm	0.012mm
Repeatablity accuracy of tool-pos	0.005mm	0.005mm
NET.WEIGHT
Distance between centers:1500mm	4700kg	4900kg
2000mm	5200kg	5400kg
FLOOR SPACE(LXWxH)
Distance between centers:1500mm	3460*1910*1960 mm	3460*1910*1960 mm

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
