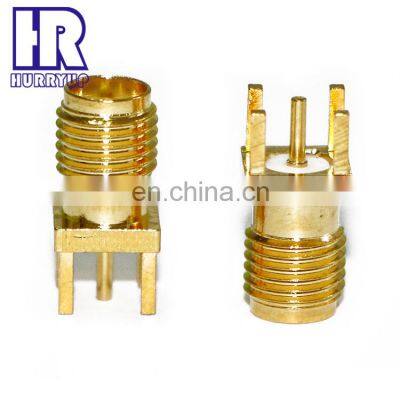

SMA-KE SMA Female Jack PCB Mount Straight RF Coaxial SMA Connector

Product Description

Product Description
SMA-KE SMA Female Jack PCB Mount Straight RF Coaxial SMA ConnectorPlease contact us diereclty for more RF Connectors Specifications OEM,Factory price,Fast delivery,Stable qualityRF coaxial connectorProduct Code:SMA-KE Female ConnectorProduct Name:SMA ConnectorPart Number:C2(14mm)Environment protect information:satisfy RoHS demandTechnical parameterElectrical performance Characteristic impedance: 50ΩRated current: 0~18GHz Contact resistance: inner conductor≤3mΩ outside conductor≤2mΩDielectrically withstanding voltage: 1000VRMSVoltage rating: 335 VRMSInsulation Resistance:≥ 5000MΩMechanical performanceInner conductor separating force:≥0.28NDurability:500 timesMaterial and surface treatment:Metal material, workmanship and surface treatmentContactMaterial of male:copper alloySurface treatment:full copper and gold-platedWorkmanship:machining operationMaterial:copper alloySurface Treatment:full copper and gold-platedWorkmanship:machining operation Plastic, Workmanship And FormingInsulatorMaterial:polytetrafluoroethyleneWorkmanship:machining operationOperation environmentTemperature Range:-55℃~+155℃ Shock:500 m/s2Vibration:10~2000Hz,10m/s2 Structure and DimensionMaximum dimension of plug: 14MM/CustomizedBrief IntroductionPackage and Store:100PCS/packageWe are a large company manufacture RF coaxial connectors.SMA(C2)is one kind of microminiature RF coaxial connectors with snap-on coupling self-lock mechanism,Characteristic impedance is 50Ω.They are widely used in connection with RF coaxial cable or the transmission of RF signal in the mobile communication system, GSM,GPRS,CDMA,LTE,GPS,GNSS,GLONASS,BEIDOU corresponding to the network,IT field and LANS etc. The characteristic of connector is in small volume, light weight and convenient connection. Product Related Product Our Company

---
