Torch SMT Solder Paste Stencil Printer for PCB Printing Machine

Product Description

TORCH SMT Solder Paste Stencil Printer for PCB Printing Machine

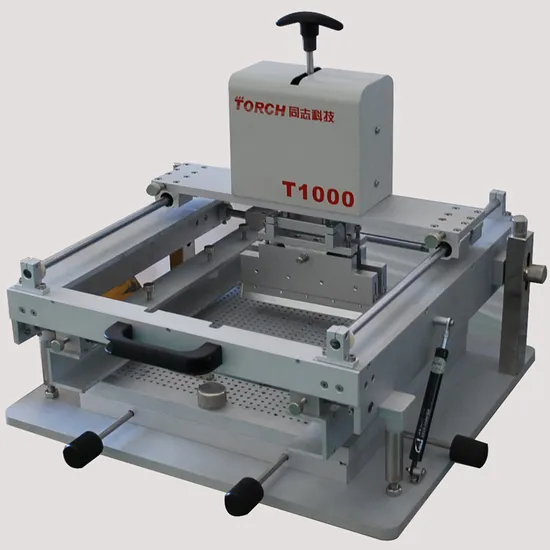

Manual Stencil Printer T1000 provides fine X, Y, Z, and θ Adjustments for exact stencil-to-board alignment resulting in precise, fine pitch printing of solder paste.
Dual size of PCB printer, magnetism thimble support and fix PCB.
Dual squeegee runs on the double parallel guiderail, they can UPS and downs individually to realize the printing process of forward -> backward, backward->forward.
Dual squeegee for clean and convenient application of solder paste
Stencil lift just by press the button of air handspike
High precision linear guide assures smooth manual squeegee stroke with its unique adjustable angle-of-attack for precise single or dual direction printing
Fine X, Y, Z, and θ Adjustments for exact stencil-to-board alignment
Double switch button operation to complete the two-time printing process, east to operate.

Maximum print area	(300*400mm)
Adjusts to various size frames:	Frame holder accepts any size stencil frame up to (400*500m)
Adjustable dual squeegee pressure/speed:	Manual
Linear squeegee guide:	Yes
Squeegee material	stainless steel (other material can be ordered)
Adjusting accuracy	< 0.01mm
Repeat accuracy	< 0.03mm.
Ideal printing speed	500pcs/min
Accessories:	Thimbles 8 Support shelves 6 Inner hexangular spanners 1 Nuts and bolts 6

---
