High Dovetail Column Milling & Drilling Machine

Product Description

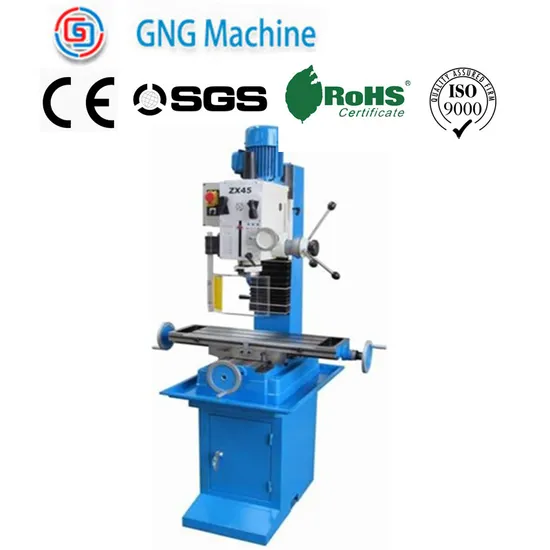

ZX45 Milling & Drilling Machine - High Dovetail Column
Main specification

Model	ZX45 Two Speed Motor
Graduation system	Metric
Colour	Same colour as above picture
Drilling capacity (Mild Steel)	40mm
Max. Face mill capacity (Mild Steel)	80mm
Max. End mill capacity (Mild Steel)	32mm
Spindle stroke / travel	130mm
Longitudinal Travel (X-axis)	570mm
Cross Travel (Y-axis)	230mm
Vertical Travel (Z-axis)	470mm
Spindle centre to column face	285mm
Head swivels	+-90°
Working table size	800mm × 240mm
Motor power	1100W (240 Volt 50Hz Australian 3 Pin Plug)
Spindle taper	MT3
Spindle speed	75 - 1600RPM in 6 steps
Drawbar threads	M12
Work table capacity	100KG
Table T-Slots size	14mm
Standard accessories	DRAW BAR DRILLCHUCK MORSE TAPER MT4/B16
Net weight/gross weight	300kg/350kg
Packing size	850X760X1150mm

Features: Milling drilling, tapping, boring and reaming.Head swivels +-90°of perpendicularSpindle micro feed precision.Positive spindle lock.Super high column, wide large table and lower noise gear driveHeavy-duty tapered roller bearing spindleAdjustable gibs on table.Accurate position, strong rigidity, strong cutting power.

---
