Ljb350 Double Horizontal Shaft Compulsory Conctere Mixer Construction Machinery Small Szie Blender China

Product Description

Product Introduction

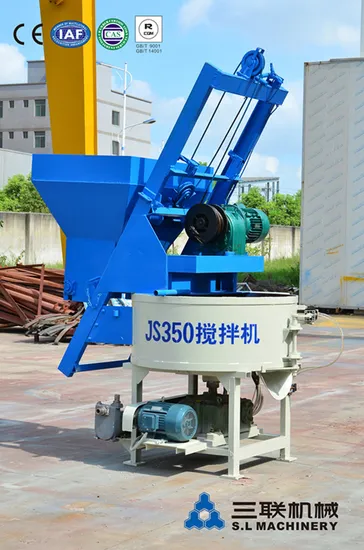

JSB350 Double Horizontal Shaft Compulsory Mixer Welcome to the future of construction with our Heavy-Duty Concrete Mixer. This state-of-the-art machine is designed to meet the demands of modern construction projects, offering a blend of power, efficiency, and reliability. Whether you're working on a small residential development or a large commercial project, our mixer is up to the task. Our mixer is not just a tool; it's a partner in your construction journey. With its robust construction and high-capacity drum, it ensures that you have a consistent supply of high-quality concrete, reducing downtime and increasing productivity.Double Horizontal Shaft Compulsory Mixer-----------------------------------------------------------------
Technical Features:
----------------------------
★ Equipped with multiple shaft end seal protection devices and wind pressure seal protection devices to effectively prevent leakage;
★ Unique mixer monitoring system can monitor the working status of the reduction box, discharge pump, and electric lubricating oil pump at any time;
★ Equipped with a pressurized upper cover water discharge system, the spraying area is larger and the water discharge is more uniform
★ Equipped with a DC24V centralized lubricating oil pump for concrete mixers, the running time can be programmed independently, it is waterproof, dustproof and has excellent performance;
★ Equipped with an enhanced reduction gearbox, and processed with high-precision technology, it has strong load capacity and longer service life;
Equipped with high-quality high-wear-resistant alloy stirring arms, the service life is 3-5 times that of ordinary stirring arms;
Applications:
------------------
:lt is more suitable for mixing medium & large aggregate particle size. Technical Parameters

Type	LJB350	JS500	JS750	JS1000
Charging Volume(L)	560	800	1200	1500
Discharging Volume(L)	350	500	750	1000
Productivity(m3/h)	≥ 17.5	≥25	≥37.5	≥50
Max. Grain Diameter of Aggregate (mm)	60	60	60	60
Speed of Mixing Blade(r/min)	35	35	32.6	32.6
Mixing Blade(pcs)	3	14	14	16
Model of Mixing Motor	Y132m-4	Y180m-4	Y200L-4	Y180L-4
Power of Mixing Motor(kw)	7.5	18.5	30	22
Model of Hoist	JS350	JS500	JS750	JS1000
Power of Hoist(kw)	4.5	5.5	7.5	11
Height of Unloading Material(mm)	1200	1500	1600	2080
Model of Water Pump Motor	25ZB27-0.75	65JDB-30	65JDB-30	KQW65-100
Power of Water Pump(kw)	75D	1.1 KW	1.1 KW	1.5KW
Frame Dimension in Working Condition(mm)	3618X1222X3453	4461X3050X5225	4950X3636X6530	7922X3510X6064
Transport State Frame Dimension(mm)	1721X1222X2450	3050X2300X2500	4150X3636X2500	4200X3110X2780
Net Weight(T)	2	4	6.8	9

Notes : The above JSB350 Mixer can be formed into mixing plant if combined with the batching machine , also can be used as engine of mixing plant . it is suitable for all kinds of prefabricated and construction project . The production and mixer of the concrete brick. The mixer is capable of mixing dry hardness concrete , plasticity concrete , fluidity concrete , soft skeletal material and all kinds of motar. The blades are screw layout , so it has the advantages of short mixing time, even mixing to meet the requirements of different construction sites.Mixer Interior Display

---
