Best Selling Corn Stalks Sawdust Airflow Pipe Dryer Machine for Sale

Product Description

2018 Best Selling Corn Stalksn Airflow Dryer Machine for Sale
Basic info:

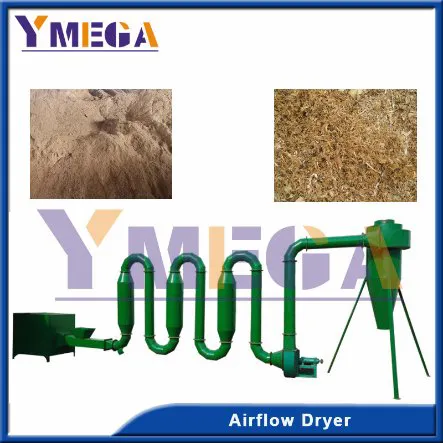

Composed mainly of burner (which can be designed to use different materials, for example it can use either biomass or homemade combustible gas as fuel), draught fan, pipeline and cyclone, HGJ Series drying system is characteristic of high drying volume and efficient waste disposal. The system features low labor investment and energy consumption.
Hot air produced from the burner will flow into pipe mingling with material due to the whopping suction strength by the fan, during which moisture within raw materials will decrease.
Sawdust Pipe Dryer Introduction:
Pipe dryer is also known as hot flue impulse type dryer or hot air dryer which features high drying efficiency. It can reduce the moisture from 40-45% to 8-12% one time. Hot air pipe dryer is specially designed for power and small particle materials (less than 3mm diameter) drying and is the ideal drying equipment in charcoal briquette or wood pellet processing. For those medium and midget plant which produce wood chips and sawdust to biofuel, pipe dryer is always the option. We have also offered rotary drum dryer for wood material drying process.
Sawdust Flash Dryer Advantages:
1.High heating intensity. Due to the high hot air speed,wood materials disperse well in the air and the drying area increases a lot, thus guarantees sufficient drying.
2.High drying speed. Wood material and the air contacting time is quite short and drying time is 0.5-5 seconds. No harm to wood material pelleting.
3.Good drying efficiency, wide application.
4.Wide ranges of hot air source: oil burner, gas stove, hot air coal furnace and vapor heat exchanger.
How to Dry Wood Chips for Wood Pellets or Briquettes:
Wood material enters to hot air stove through pipes and sucked to cyclone by draught fan along with hot air. The whole drying process needs only 3-5 seconds. Then the dried wood materials release from cyclone while the waste air and vapor go out from the above exit.
Technical parameters of Sawdust Pipe Dryer:

Model	Name	Power(kw)	Capacity(kg)	Installation Size(m)		GW(kg)
HGJ-S	Small Dryer	4	200-300		9*1.5*3.3	1300
HGJ-M	Medium Dryer	5.5	300-400	11*1.5*3.3		1500
HGJ-B	Big Dryer	7.5	500-700	13*1.5*3.8		1800

Product Details:
Other biomass processing machinery
Packing and shipping:
The small size portable Sawdust Pipe Dryer for sale would be covered by plastic, and then packed in standard ply wooden package for exporting.
Our Services:

1	We provide 1 year guarantee with life-time service.
2	We provide English manual and video for operation
3	If required, we could send technicians for installation and commissioning, training.
4	Any problem in operation or others about the machine, you can contact with us we will give solution in 24-48 hours. If big problem, we can send technician to customer's local place.

Contact information:
If you have interest in this Sawdust Pipe Dryer for sale, kindly please send us inquiry.

---
