Paper Core Making Machine

US$10,000.00-15,000.00 1 Set (MOQ)

Basic Info.

Model NO.
DC-80A
Paper Core Usage
Industry
Tube Machine Type
Bending Machine
Gumming Type
Single Side
Layers of Roll Paper
2 - 8
Reelpipe Speed
6 - 12m/minute
Wall Thickness of Paper Tube
5 - 10mm
Certification
ISO
Condition
New
After-sales Service
Installation Guiding/Spare Parts Support
Installation
Engineers Will Be Sent to Install
Test Run
Free
Training
Free
Nods
2-4
Paper Grammage
45-600G/M2
Core Diameter
25-250mm
Drive Way
Frequency Control,Multi-Point Synchronous
Size
3700mm*2400mm*1800mm
Weight
2000kg
Color
Option
Transport Package
Standard Export Package
Specification
ISO
Trademark
Dingchen
Origin
Qinyang City, Henan Province
HS Code
84411000
Production Capacity
30sets Per Month

Product Description

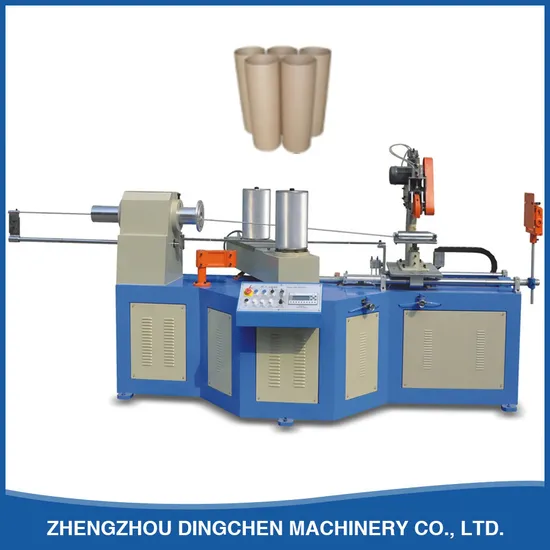

DC-76 Automatic paper core making machine
1. Dimension of roll core: Φ 28-75mm(2-7ply) length: 1200-2000mm
2. Dimension of raw paper: 300-400 G/M2 width: 50-90mm
3. Power: 4.5kw (380V. 50Hz)
4. Dimension of main machine: 3000*1800*1600mm
5. Dimension of glue coating machine: 1800× 500× 1800mm
6. Dimension of paper feeder: 4500× 1300× 800mm
7. Weight of all machine: 2.5ton
Use:
Used for making all kind of tubes, such as sticky tape tube, cloth roller tube, tissue paper tube, chemical fibre tube, body of paper cans.
Arial'; Background: RGB(255, 255, 255); Mso-shading: RGB(255, 255, 255); "
Model DC-76
Technical parameter Wheel hub driving 4 wheels
Number of roll paper 3-16 plies Cutting blade motor 0.4 kw Servo & Stepping motors
Max-diameter 200mm bearing Wanxiang
Min-diameter 20mm Control system
Max-thickness 10mm Controller PLC Delta
Min-thickness 1mm Program edition JS-E 2.0
Rolling core
matrix fixed way		 fixation Man-machine interface Wenview
Rewinding noses Four noses double belt Inverter YASKAWA 7.5KW
Cutting way Single bladecutting Execute equipment Zhengtai
Gluing way Double sides Signal component Omron
Fixed length way Infrared/apron/
Numbering device		 Angle adjusting machine have
opertor 1-4 Pneumatical part Airtac
Productive speed 3-28m/min synchronized control Servo,
Speed of adjust
and control		 Inverter Synchronized follow cut-system Servo follow system
Power input 3x380V Outfit assemble
Size (mm) Remote control have
Mainframe size:
L*W*H		 4150mm x 1850mm x 2050mm Auto falling tube shelf have
Area space:L*W 18000*6000 Angle of belt auto
Wheel hub diameter 215mm Belt adjust manual
Wheel hub width 200/350 Mainfram swing angle have
Min-tread 750 Stop when paper without have
Max-tread 950 Auto giving glue Screw pump 1.5 kw
Total weight About 4500kg Paper-belt giving lubricating oil Auto
Drive system Tension control Can choose
Main power 7.5KW Paper-shelf type Integral
Move speed 1400r/min belt sailcloth
Hub max speed 48r/min Enclosed component
Hub output strength 4500n.m Shaft 2
Reductor type WPO Belt 2
Gearbox typa
Useful tool have
