Product Details
Product Description
Product Description
Product Feature:

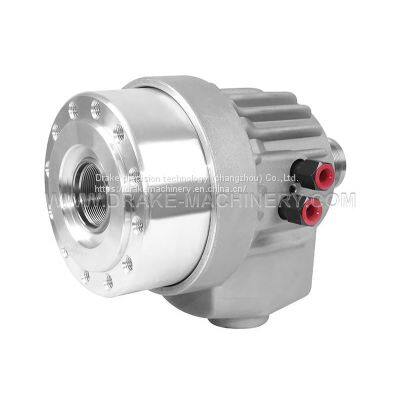

Lightweight, large through-hole rotary cylinders with through-holes for machining long-shaft parts.
Built-in check valve self-locking mechanism can prevent pipe damage, loss of pressure source, and ensure stable clamping of workpieces. Safe and reliable.
High-speed, high-life, internal components are imported.
Can be customized according to customer requirements.
Performance parameters
|
|
|
|
|
|
|
|
|
|
Model/Spec.
| Piston area (cm²)
| Stroke
(mm)
| Hightest turnover number
min-1(rpm)
| Maximum working pressure
MPa(kgf/cm²）
| GD2
(kg.m²)
| Total volume of
oil drainage
| Weight
(kg)
|
|
|
|
|
|
|
|
|
|
|
Press side
| Pull side
|
|
|
|
|
|
|
|
|
|
|
TH428
| 53.2
| 50.5
| 10
| 8000
| 4.0(40)
| 0.02
| 3
| 5.8
|
|
|
|
|
|
|
|
|
|
|
TH536
| 69.8
| 67.5
| 15
| 8000
| 4.0(40)
| 0.05
| 3
| 8.5
|
|
|
|
|
|
|
|
|
|
|
TH646
| 97.3
| 87.9
| 15
| 7000
| 4.0(40)
| 0.09
| 3
| 13.5
|
|
|
|
|
|
|
|
|
|
|
TH852
| 146.8
| 136.6
| 20
| 6200
| 4.0(40)
| 0.2
| 3.9
| 16.4
|
|
|
|
|
|
|
|
|
|
|
TH1075
| 196.2
| 182
| 25
| 4700
| 4.0(40)
| 0.4
| 4.2
| 25.8
|
|
|
|
|
|
|
|
|
|
|
TH1291
| 250.6
| 234.1
| 30
| 3800
| 4.0(40)
| 0.61
| 4.5
| 33
|
|
|
|
|
|
|
|
|
|
|
TH1512
| 345.4
| 334.6
| 30
| 2800
| 4.0(40)
| 1.5
| 7
| 50
|
|
|
|
|
|
|
|
|
|
|
Size parameters
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Model/Spec.
| A
I.D
| B
| C
| D
| E
(h7)
| F
| G1
max.
| G1
min.
| G2
max.
| G2
min.
| H
| J
| K
| L
| M1
| M2
| N1
| N2
|
TH428
| 90
| 130
| 120
| 100
| 80
| 40
| 10
| /
| 35
| /
| 45
| 127.5
| 155
| 6-M8×15
| M33×1.5
| 25
| M34×1.5
| 26
|
TH536
| 105
| 150
| 135
| 115
| 100
| 50
| 15
| /
| 40
| /
| 47.5
| 125.5
| 170.5
| 6-M10×20
| M42×1.5
| 25
| M44×1.5
| 28
|
TH646
| 125
| 169
| 156
| 130
| 100
| 65
| 15
| /
| 40
| /
| 60
| 135.5
| 193.5
| 12-M10×20
| M55×2
| 30
| M52×1.5
| 32
|
TH852
| 150
| 198
| 188
| 170
| 130
| 70
| 20
| 0
| 45
| 25
| 66
| 145
| 198
| 12-M10×20
| M60×2
| 30
| M58×1.5
| 34
|
TH1075
| 175
| 225
| 213
| 190
| 160
| 95
| 25
| /
| 50
| /
| 62
| 166.5
| 231
| 12-M10×22
| M85×2
| 35
| M84×2
| 40
|
TH1291
| 205
| 255
| 240
| 215
| 180
| 110
| 30
| /
| 55
| /
| 64.5
| 180.5
| 250
| 12-M12×24
| M100×2
| 35
| M99×2
| 46
|
TH1512
| 250
| 315
| 305
| 275
| 230
| 140
| 30
| /
| 55
| /
| 68
| 193
| 273
| 12-M16×32
| M130×2
| 45
| M134×2
| 46
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Model/Spec.
| 01
H8
| 02
H8
| P
| Q1
| Q2
| Q3
| R
(g7)
| S
| T
| U
| V
| W1
| W2
| X1
| X2
| Y1
| Y2
|
|
TH428
| 30
| 28
| 101.5
| 11
| 24
| PT1/4
| 32
| 45
| 65
| 88
| 4
| 72
| 105
| /
| /
| 76
| M4×7
|
|
TH536
| 38
| 36
| 119
| 11
| 24
| PT1/4
| 42
| 55
| 80
| 98
| 4
| 80
| 110
| /
| /
| 83
| M5×10
|
|
TH646
| 50
| 46
| 127.5
| 12
| 30
| PT3/8
| 50
| 70
| 95
| 116
| 4
| 98
| 125
| 62
| M4×8
| 98
| M5×10
|
|
TH852
| 55
| 52
| 135.5
| 12
| 32
| PT3/8
| 56
| 75
| 100
| 128
| 4
| 100
| 130
| 67
| M4×8
| 110
| M6×10
|
|
TH1075
| 80
| 75
| 153.5
| 17
| 36
| PT3/8
| 81
| 100
| 125
| 158
| 5
| 115
| 160
| 92
| M4×8
| 145
| M6×10
|
|
TH1291
| 95
| 91
| 165
| 21
| 34
| PT1/2
| 96
| 120
| 142
| 180
| 5
| 136
| 185
| 110
| M4×8
| 165
| M6×10
|
|
TH1512
| 125
| 120
| 176.5
| 23
| 40
| PT1/2
| 130
| 160
| 204
| 218
| 6
| 160
| 210
| 171
| M6×10
| 215
| M6×10
|
|
We are the manufacturer of China Rotary Cylinder, specializing in Rotating Hydraulic Cylinder and High-Speed Hydraulic Cylinder, with built-in check valve self-locking mechanism to prevent pipe damage, loss of pressure source, and ensure stable workpiece clamping. Safe and reliable.If you have any special requirements or parameter changes, please provide information and contact us.
>>
