200L Double Layer Jacketed Glass Reactor

Product Description

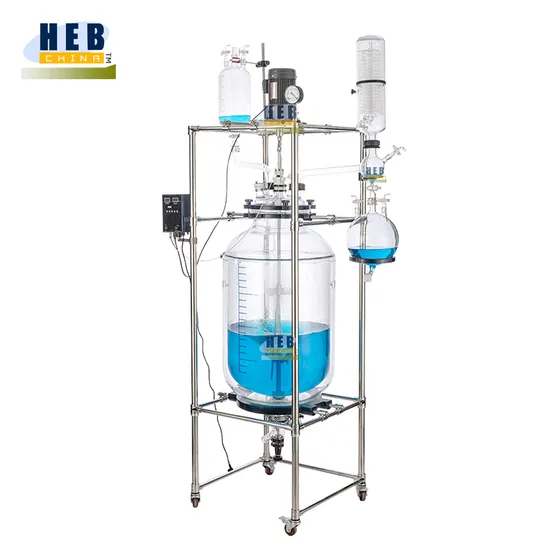

200L double layer jacketed glass reactor
Product introduction:
This machine has electric constant speed stirring system, condensation and dropping system. The interlayer of kettle body needs to be connected with heating or cooling circulation equipment. When the material is stirred, the circulating hot solution or cooling liquid is injected through the interlayer to make the materials in the kettle are heated or cooled at a constant temperature. When the material is heated and reacted, the evaporation efficiency can be improved under vacuum conditions (a vacuum device need to be connected). The solvent vapor is cooled into liquid when passing through the glass condensing coil (a cooling device need to be connected), which can be refluxed into the kettle. It can also be recycled through the lower valve of the dean-stark. When the reaction is completed, the material can be discharged from the side outlet at the bottom of the kettle.
This series of products need to be equipped with a vacuum device, a high-temperature or low-temperature circulation device to form system devices.
Basic configuration:
• The parts in contact with the material are all made of high borosilicate glass (expansion coefficient 3.3) and PTFE materials, which have stable performance and are not easy to react with the materials.
• Using aluminum alloy + stainless steel material as frame body
• Glass + PTFE discharge valve, side material discharge without effusion.
• Low-speed power-increasing motor, electronic stepless speed regulation, fine adjustment by knob, speed control box with dual display function can digitally display the speed and the temperature of the material in the kettle.
• The stirring system adopts ceramic bearings and mechanical seals to prevent the stirring rod from wearing out.
• Using PT100 temperature sensor, 304 stainless steel material, wrapped by transparent PTFE tube outside , double anti-corrosion.
• Vacuum pressure gauge shows real-time vacuum by pointer.
• Crescent-type stirring paddle, 304 stainless steel + PTFE stirring blade; the material of the stirring rod is 304 stainless steel, and it is wrapped in PTFE tube outside.
• There is a universal wheel with brake at the bottom of the equipment, which can be moved as a whole and be operated conveniently.
• Fuse safety protection

Technical parameter:

Model		HEB-200L
Reactor volume		200L, inner diameter 600mm, outer diameter 650mm, inner length 840mm
Interlayer volume		About 40L
Voltage/Frequency		220V 50Hz/110V 60Hz
Stirring motor power		750W1/5
Stirring speed		0-280rpm/min
Temperature range of reactor		-80ºC~+250ºC
Temperature measuring accuracy		±1ºC
Vacuum		0.098Mpa
Kettle lid Φ340mm 6 ports	Stirring port	Φ60mm flange port
	Condensation reflux port	50# ball mill port
	Dropping stark port	50# ball mill port
	Pressure relief port	34# standard port
	Temperature measuring port	Φ45mm flange port
	Solid feeding port	Φ80mm flange port, inner diameter Φ60mm matching PTFE cover
Stirring paddle		Φ20×1300H(mm) blade 240mm
Condenser		Φ160mm×600H(mm), lower Φ60mm flange port
Condensing area		0.95
Dean-stark		Upper Φ60 flange port, left 50# ball mill stopper, right 24# standard port with multi-function valve, lower 50#ball mill plug valve
Dropping flask		5L barrel shape, upper 29#standard port with air releasing valve×2pcs, 34#standard port with glass stopper
Collection flask		10L, upper 50#ball mill port, 24#standard port with air releasing valve×2pcs, lower glass material releasing valve
Pressure relief valve		34#standard plug valve, releasing valve (pagoda joint) with 12mm outer diameter
Material discharging port		Φ100mm flange, Φ65mm material discharge hole; oblique discharging port (pagoda joint) Φ40mm; 300mm from the ground
Vacuum nozzle		Pagoda joint with 12mm outer diameter
In and out circulating nozzle of condenser coil		Pagoda joint with 15mm outer diameter
Overall dimension(W*D*H)		1250×930×2800mm
Net weight		175KG
Packing dimension		2200×790×875mm 1385×880×910mm two wooden packages 2.63m³
Packing weight		271(159+112)KG
