Hbts80-16-110 Trailer Concrete Pump for High-Quality Cement Delivery

Product Description

Product Description

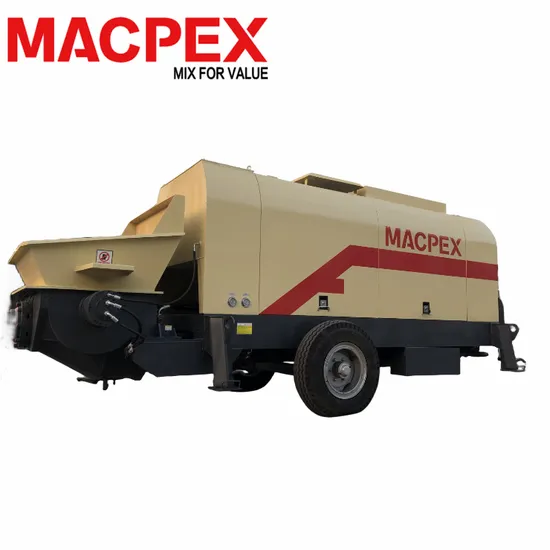

Introducing the HBTS80-16-110 Trailer Concrete Pump for High-Quality Cement Delivery
Get ready to revolutionize your construction projects with the HBTS80-16-110 Trailer Concrete Pump from SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD. This high-quality concrete pump is designed to deliver exceptional performance and efficiency, making it the perfect choice for all your cement delivery needs.
Key Features:
Reliable Power: Powered by a diesel engine that meets emission standards, this concrete pump ensures reliable performance, smooth operation, and convenient maintenance. It can operate seamlessly in even the harshest environments, eliminating the need for a power source.
Automatic Speed Adjustment: The HBTS80-16-110 features innovative "automatic adjustment of diesel engine speed" technology. The speed sensor detects changes in pumping pressure and adjusts the diesel engine speed accordingly, ensuring smooth and reliable pumping operations while saving fuel.
Advanced Control System: The entire machine is PLC programmable and controlled by a computer, offering optimized design and simple operation. With the wireless remote control, you can easily operate the pump from a distance, enhancing convenience and efficiency.
Dual Cylinder Hydraulic Pumping: The pumping system adopts dual cylinder full hydraulic pumping, significantly improving work efficiency and reducing failure rates. Say goodbye to downtime and hello to increased productivity.
S-Pipe Distribution Valve: Equipped with a floating wear-resistant ring, the S-pipe distribution valve automatically compensates for wear, ensuring good sealing and a reliable structure. This feature enhances work efficiency and reduces maintenance costs. The valve offers two working modes: low-pressure large displacement and high-pressure small displacement.
Electric and Hydraulic Reversing System: The HBTS80-16-110 utilizes electric and hydraulic control for reversing, providing a sensitive response and excellent stability. You can rely on this pump for precise and efficient operations.
Impressive Conveying Capability: With a horizontal conveying range of 400-500 meters and a vertical conveying range of 150-180 meters, this trailer concrete pump can easily meet the requirements of high-rise buildings and long-distance construction projects.
Efficient Cooling System: The hydraulic oil cooling system features an oil air cooler with high cooling power. It ensures that the working oil temperature of the hydraulic system stays below 60 ºC, eliminating the need for a water source and making construction convenient and equipment easy to move.
Open Hydraulic System: The HBTS80-16-110 adopts an open hydraulic system, resulting in improved reversing speed and higher efficiency. Experience smooth and reliable operations like never before.
Anti Pump Function: With an anti-pump function and automatic pressure protection, this concrete pump reduces pipeline blockage, enhances work efficiency, and extends the service life of pipelines. Say goodbye to frustrating delays and hello to uninterrupted progress.
Large Capacity Hydraulic Oil Tank: The HBTS80-16-110 is equipped with a large capacity liquid accumulation hydraulic oil tank, ensuring a steady and reliable supply of hydraulic oil for optimal performance.
Don't miss out on the opportunity to elevate your construction projects with the HBTS80-16-110 Trailer Concrete Pump. Trust SHANDONG MACPEX MACHINERY EQUIPMENT CO., LTD., a leading construction equipment supplier, to deliver the highest quality and performance. Get yours today and experience the difference!
Detailed Photos
Product Parameters

Diesel Concrete pump		MD20-08-40R	MD30-10-48R	MD40-11-60R	MD50-13-66R	MD60-13-90R	MD60-16-120R	MD80-13-120R	MD80-16-129R	MD90-16-176R
Theo conveying capacity (m3/h)	high pressure	12	16	19	22	29	41	48	45	56
	low pressure	21	30	43	50	58	62	80	76	94
Theo conveying pressure (MPa)	high pressure	8	9.5	11	13	13	16	13	16	16
	low pressure	4.2	4.5	5.3	6.2	6.4	9.2	6.4	9.2	9.2
Conveying height (m)	level	350	400	450	550	550	650	550	650	650
	vertical	110	130	150	180	180	220	180	220	220
Rated power of the main power system (Kw)		39.6	56	66	82	112	120	120	129	176
Diesel engine fuel consumption (L/h)		5.8	8.3	10	12.5	15.8	19.5	19.5	21	28
Distribution valve form		S valve	S valve	S valve	S valve	S valve	S valve	S valve	S valve	S valve
Distribution valve form		20/25	25/30	25/30/40	25/30/40	40/50	40/50	40/50	40/50	40/50
Concrete slump (mm)		100-230	100-230	100-230	100-230	100-230	100-230	100-230	100-230	100-230
Power type		Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel	Diesel
Loading volume (m3)		0.4	0.4	0.5	0.5	0.6	0.6	0.6	0.6	0.6
Loading height (mm)		1200	1180	1300	1350	1400	1400	1400	1400	1400
Weight		2500	3100	3360	4000	4800	6000	6600	6600	6800
Dimensions(mm)		4300x1670x1680	4300x1670x1680	4850x1670x2070	5000x1670x2070	5465X1850X1850	6500x2160x2600	6500x2230x2600	6500x2230x2600	6500x2230x2600

Electrical Concrete pump		ME15-13-30		ME30-08-37		ME50-13-55		ME60-16-90		ME80-16-110
Theo conveying capacity (m3/h)	high pressure	7		13		22		37		47.5
	low pressure	15		26		46		63		78
Theo conveying pressure (MPa)	high pressure	13		9.5		13		16		16
	low pressure	6		4.5		6.2		9.2		9.2
Conveying height (m)	level	550		400		550		650		650
	vertical	180		130		180		220		220
Rated power of the main power system (Kw)		30		37		55		90		110
Distribution valve form		S valve		S valve		S valve		S valve		S valve
Distribution valve form		20/25		25/30		25/30/40		40/50		40/50
Concrete slump (mm)		100-230		100-230		100-230		100-230		100-230
Power type		Motor		Motor		Motor		Motor		Motor
Loading volume (m3)		0.34		0.4		0.5		0.6		0.6
Loading height (mm)		1050		1180		1350		1400		1400
Weight		1480		2200		3200		5200		5600
Dimensions(mm)		3380×1270×1450		3770×1420×1620		4300×1670×1680		6200×1882×1965		6200×1882×1965
