US$2,900.00-3,350.00
|
1 Piece
(MOQ)
|
Basic Info.
Maximum Lifting Height
<10m
Maximum Lifting Weight
<2t
Max. Lifting Moment
1.7 T.M
Standard Extension
2 Hydraulic Boom + 2 Manual Boom
Max Lifting Height From Base
6.9m
Motor
2.2kw Electric Motor
Suggested Oil Flow
3.4L/M
Max Working Pressure
18MPa
Standard Control Type
Manual
Transport Package
Iron Frame and Film
Specification
1.3TON Truck crane
Production Capacity
120 Pieces / Month
Packaging & Delivery
Package Size
200.00cm * 96.00cm * 126.00cm
Package Gross Weight
300.000kg
Product Description

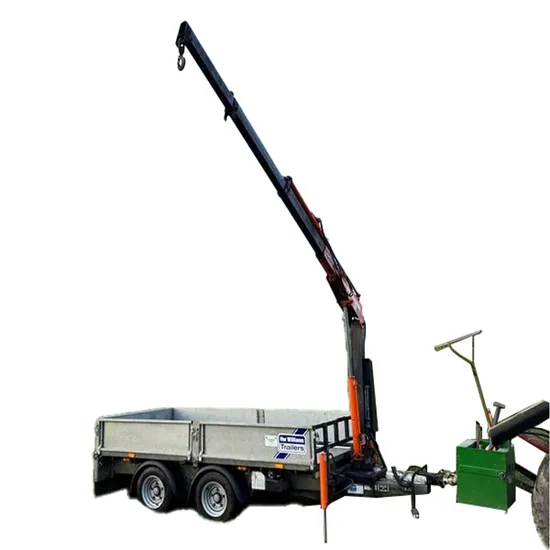

Product Description Our RL130 mini truck loader is a powerful tool to pick up oil drum , hive, tyres and boat etc , it could be mounted in truck , tractor , flatbed trailer . The crane includes 2 pieces hydraulic boom , 2 pieces manual extension boom . You could customize by 1 piece hydraulic + 1 piece manual , or 2 pieces hydraulic + 1 piece manual .
Operation is diversified , it could be driven by tractor pto and adjust the action by the handles
Hydraulic engine power unit is optional with the remote control .
Electric hoist winch is also available to make your lifting work more easily and funny .
Small Size , Light Weight , Heavu duty Lift with Low Cost !
Come to us for your customized truck crane .
Detailed Photos
Product Parameters
| Technical date | U.M. | Model |
| | | RL 130.1 | RL 130.2 | RL 130.3 | RL 130.4 | RL 130.5 |
| Max. Lifting moment | T.m | 1.7 |
| Standard extension | No. | 1M | 1H | 2H | 2H+1M | 2H+2M |
| Standard outreach | m | 1.1 | 2.1 | 3.1 | 4.2 | 5.0 |
| Swing angle | . | 330 |
| Max. Angle slope | . | 5 |
| Swing torque | KNm | 6.5 |
| Max. Lifting height from crane base | m | 3.2 | 4.2 | 5.2 | 6.2 | 6.9 |
| Hydraulic pack | | OPTIONAL |
| Motor | KW | 2.2 |
| Voltage | V | 12/24 |
| Suggested oil flow | L/min | 3.4 |
| Hydraulic tank | L | 12 |
| Max. Working pressure | Mpa | 18 |
| Standard control type | | Manual |
| Weight | kg | 247 | 256 | 274 | 288 | 300 |
