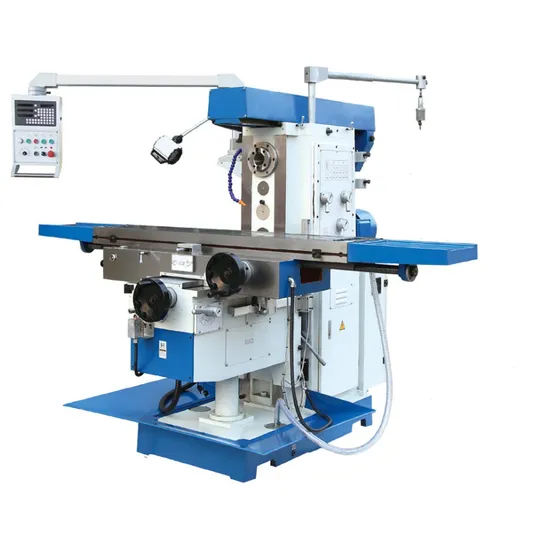

XL6036 Horizontal Milling Machine Tool

Product Description

Product Description
DRO is optional accessories
Table 3 axes are controlled by one servo motor, torque large, energy efficiency, safe and reliable
Vertical milling head is standard accessory with the speed range of 0-600r.p.m.
Product Parameters

Specification	Unit	XL6036C	XL6036CL
Spindle taper	-	7:24 ISO50
Distance bAtwAen spindle nosp and table	mm	20-470
Distance from spindle axis to arm	mm	175
Horiontal spindle speed range		12steps 60~1800r.p.m
Table size	mm	1325x360	1600x360
Table travel(X/Y/Z)	mm	1100/320/450	1300/320/450
Table feed(X/Y/Z)	mm/min	8 steps 30-750 / 20-500/ 15-375
Table rapid speed (X/Y/Z)	mm/min	1200/800/600
T-slots(NO:/width/pitch)	mm	3/18/80
Arm travel	mm	500
Main motor power	kw	5.5
Torque of X/Y/Z axis AC servo motor	N.m	15
Overall size	mm	2245x2100x1870	2520x2100x 1870
Net weight	kg	2500	2550

RO is optional accessories
Table 3 axes are controlled by one servo motor, torque large, energy efficiency, safe and reliable
RO is optional accessories
Table 3 axes are controlled by one servo motor, torque large, energy efficiency, safe and reliable
Vertical milling head is standard accessory with the speed range of 0-600r.p.m.
Vertical milling head is standard accessory with the speed range of 0-600r.p.m.

---
